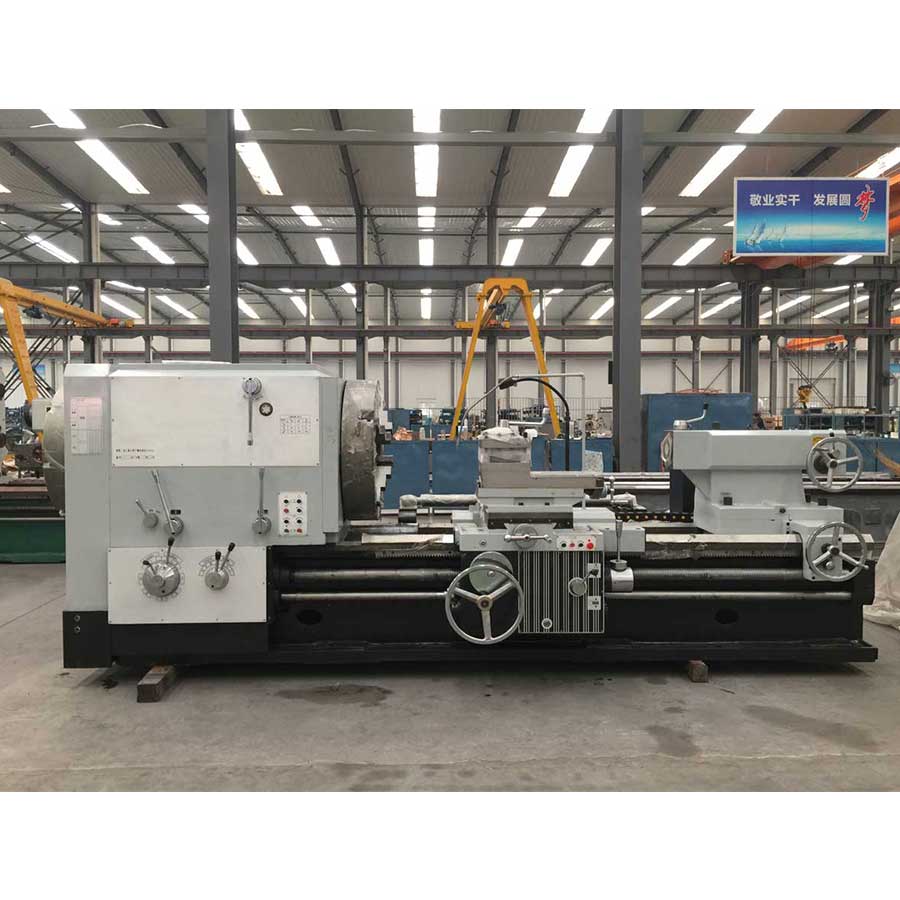

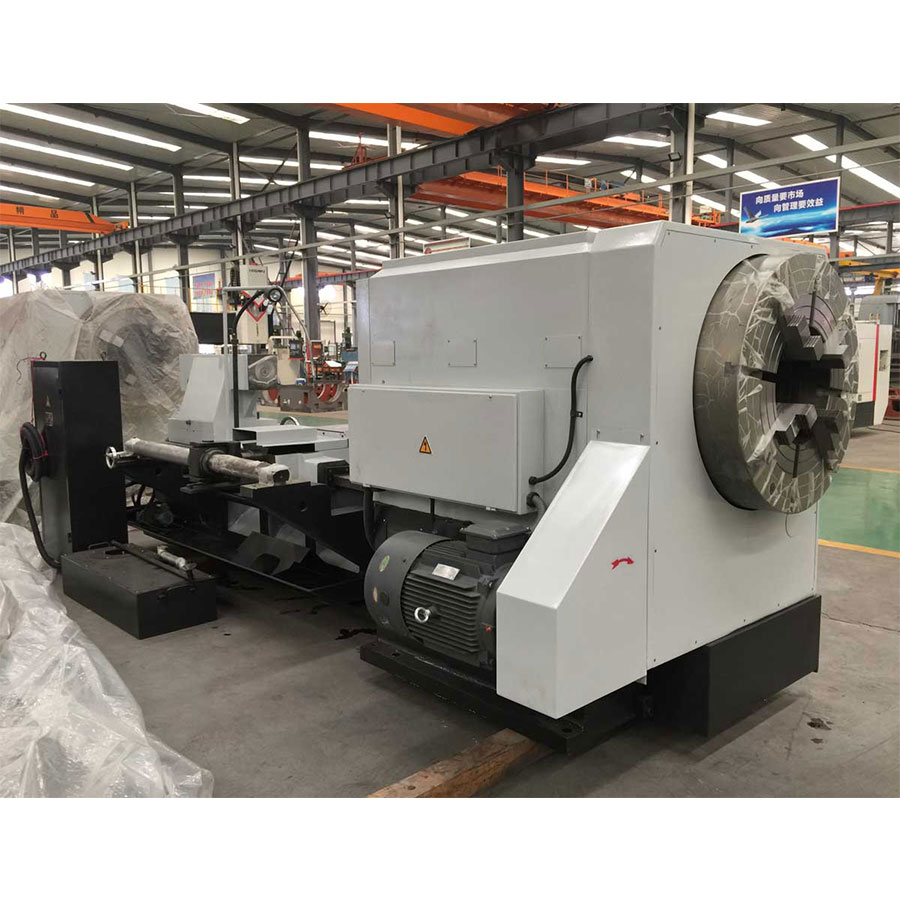

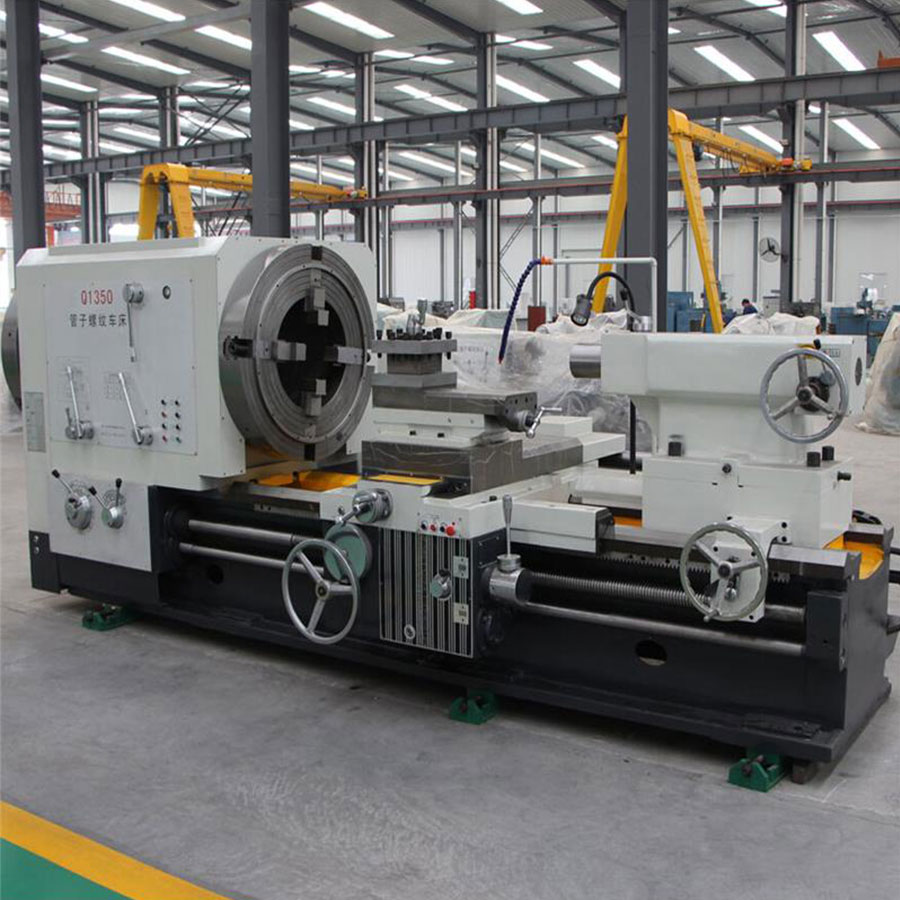

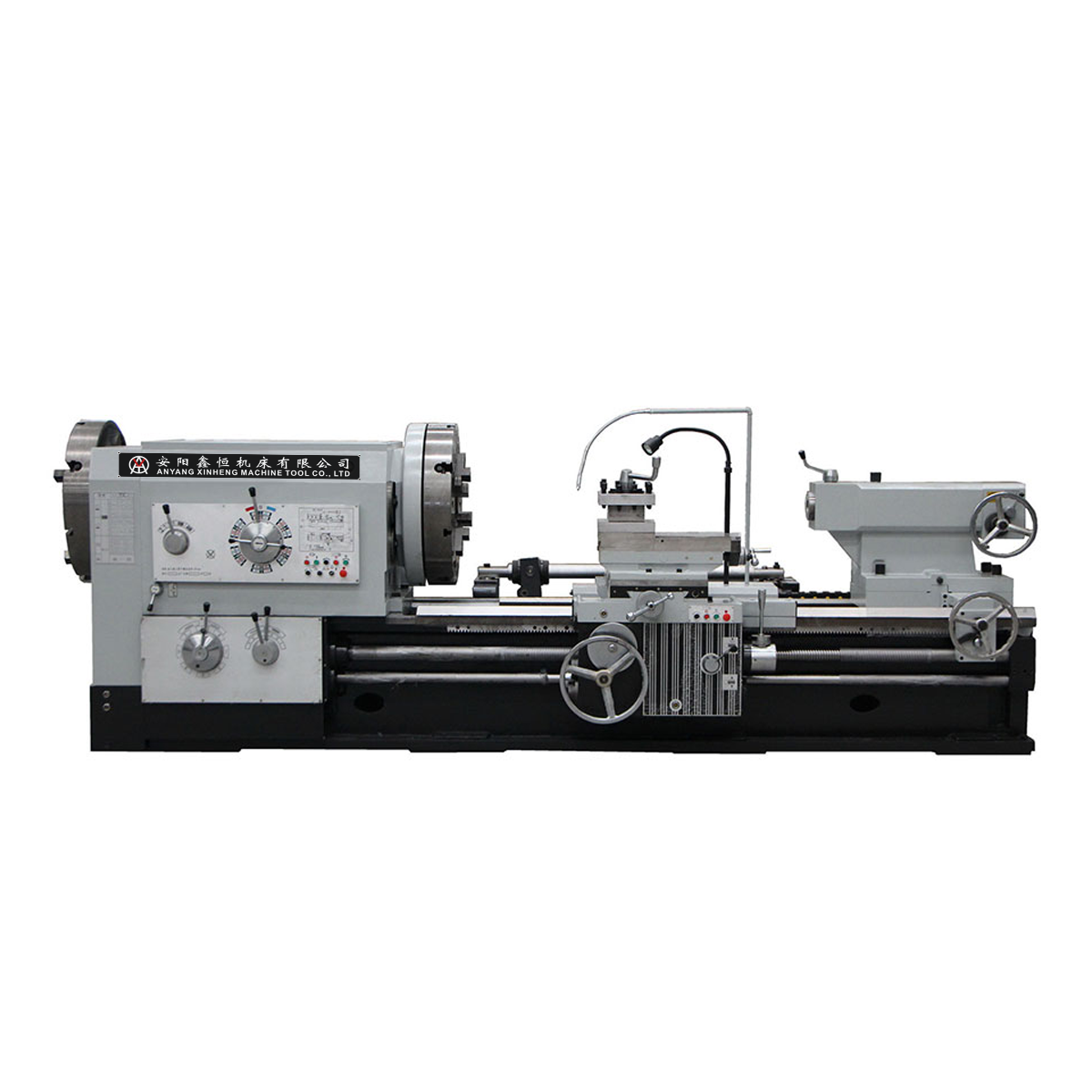

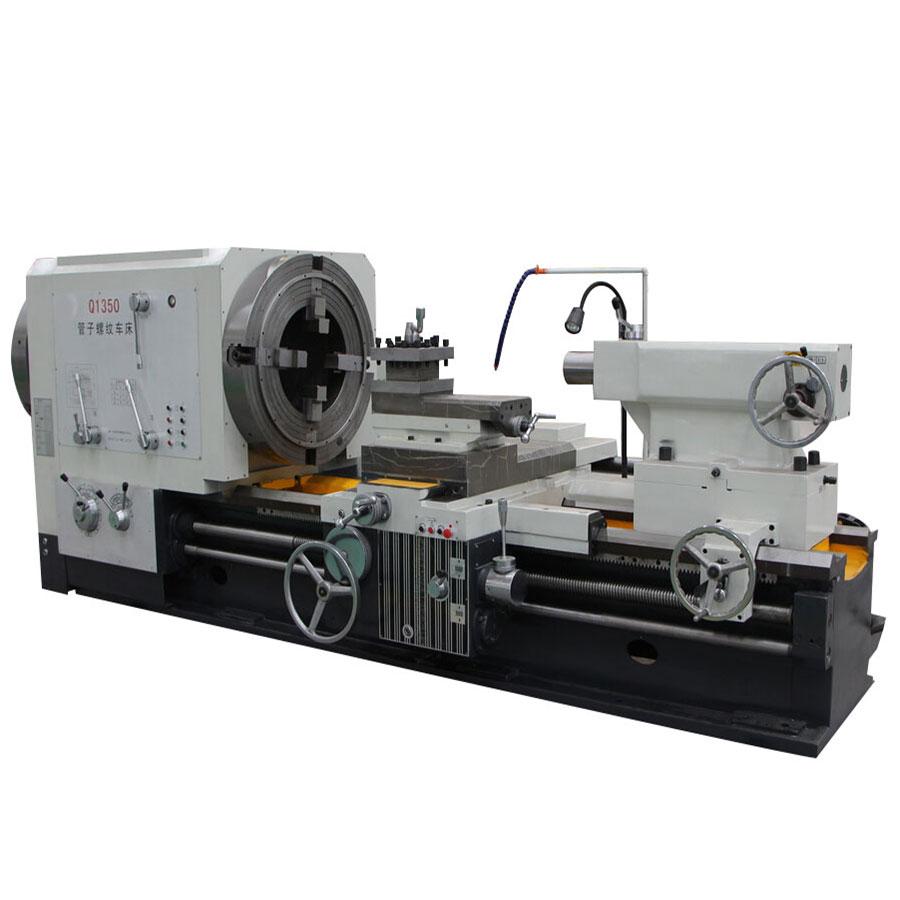

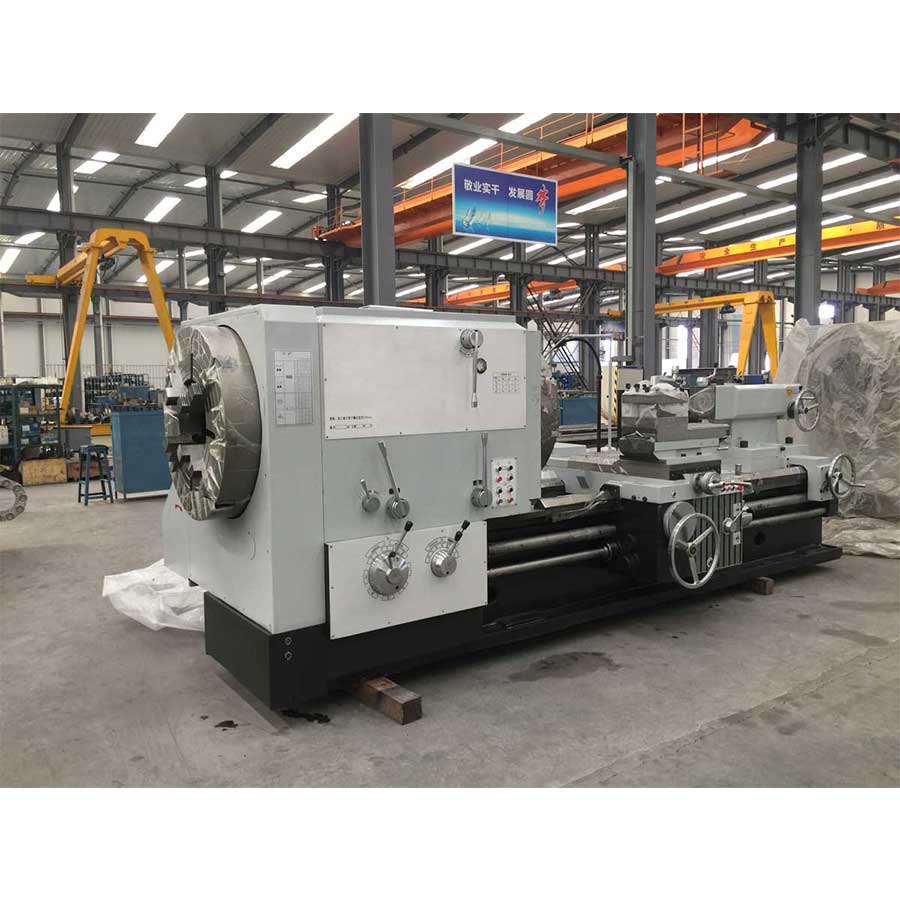

Q12 series pipe threading lathe mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore, end face of shafts and disks, this series is equipped with taper guide bar device which enables this series to process taper thread, this series is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, for processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Span of guideway:550mm & 600mm
● Spindle bore 130/200/225/280 mm.
● Double hollow chucks.
● The max. workpiece for our lathe is 3000/4000 kg.
● There are oblique chip outlets in our lathe bed, easy for chip removing.
● Our lathe guide is quenched by induction quenching device, hardened layer thickness is 2-3mm, hardness is 52 HRC.
● Taper attachment, quick change toolpost, DRO, grinding attachment, milling power head, rotary tailstock, motorized tailstock are for option.
Span of guideway:755mm
● Spindle bore 280/330/390/440/520 mm.

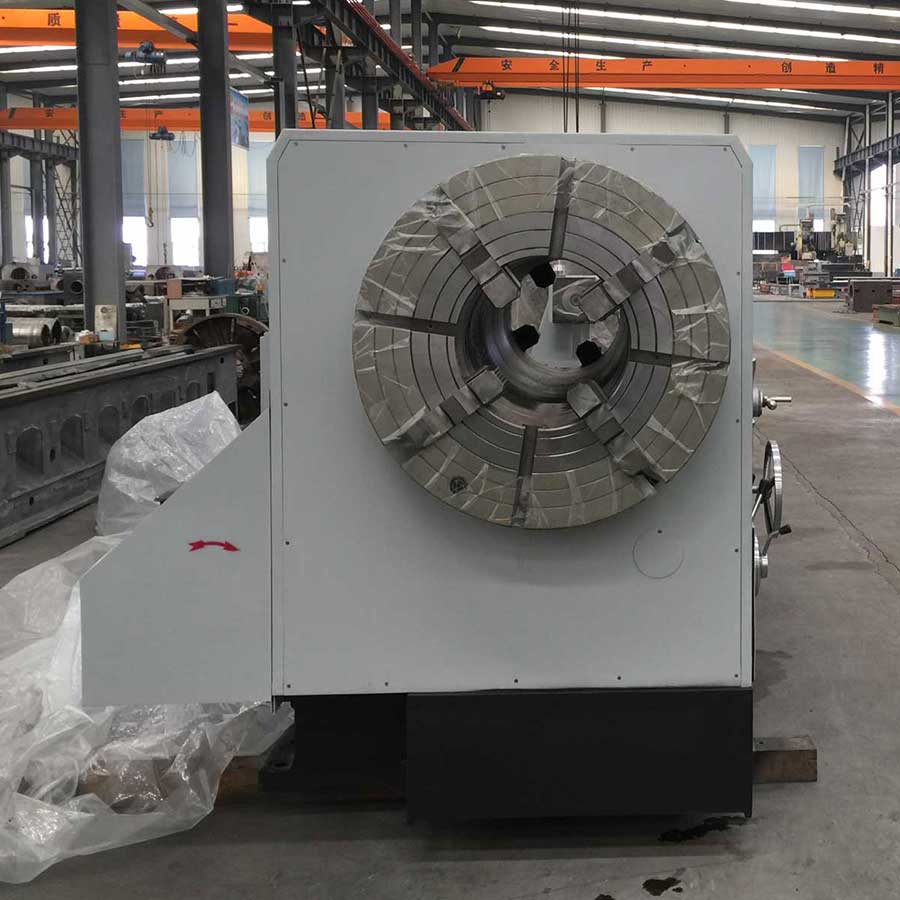

● Double 4-jaw hollow chucks.
● The max. workpiece for our lathe is 6000 kg.
● There are oblique chip outlets in our lathe bed, easy for chip removing.
● Our lathe guide is quenched by induction quenching device, hardened layer thickness is 2-3mm, hardness is 52 HRC.
● Taper attachment, quick change toolpost, DRO, grinding attachment, milling power head, rotary tailstock, motorized tailstock are for option.
