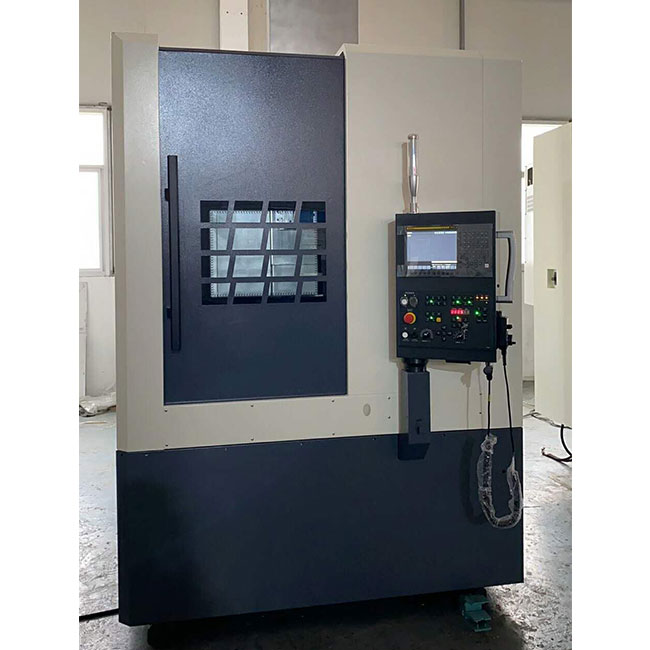

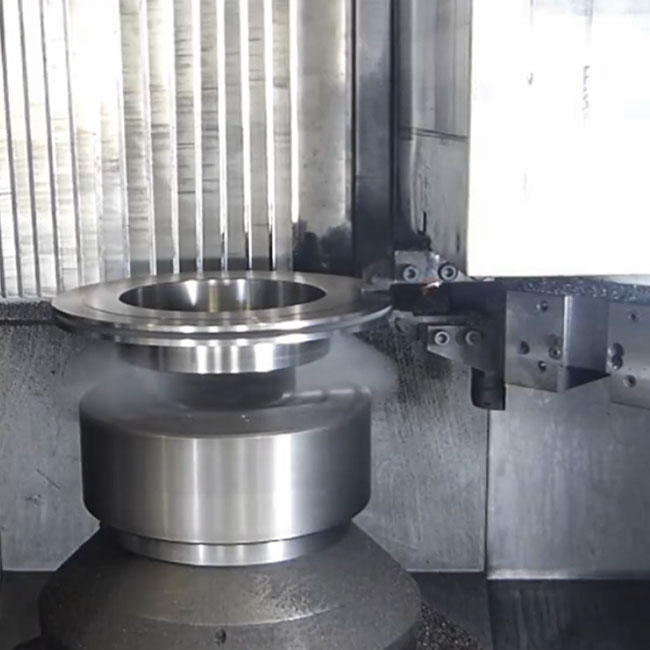

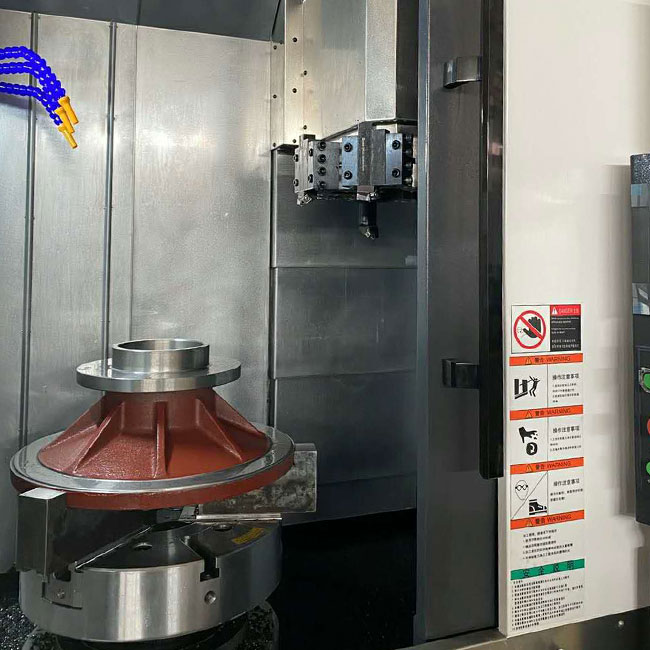

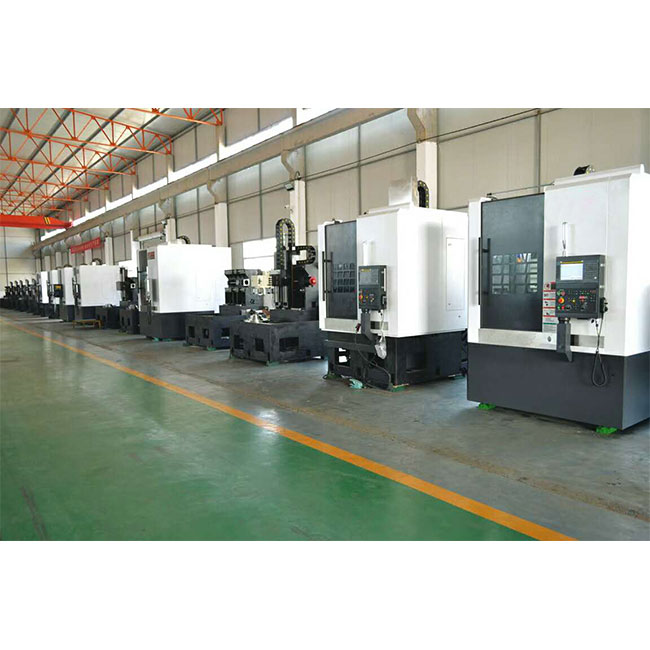

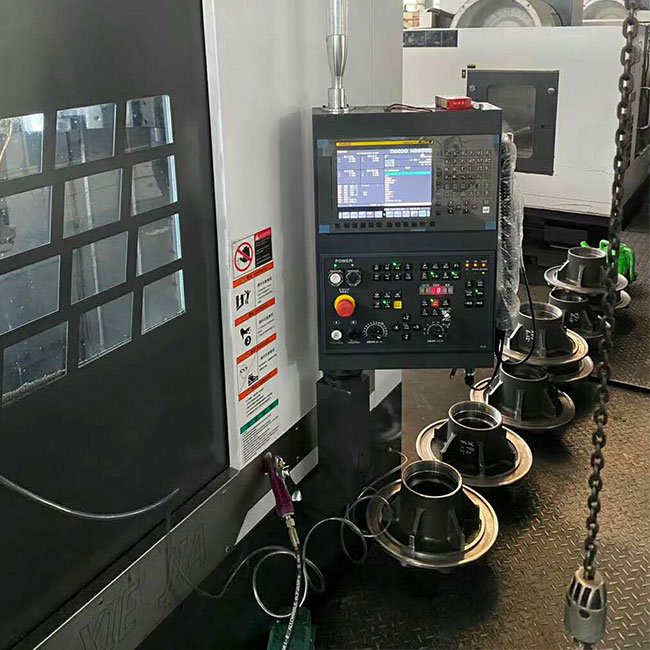

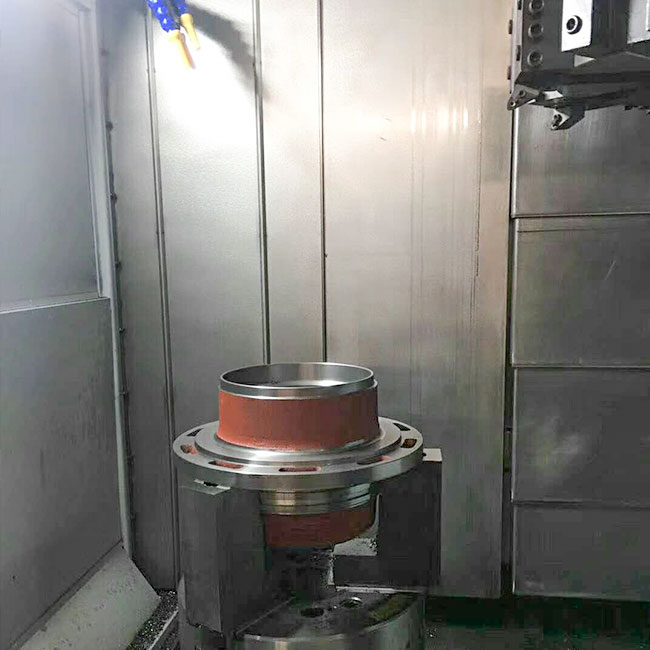

Vertical CNC Lathe

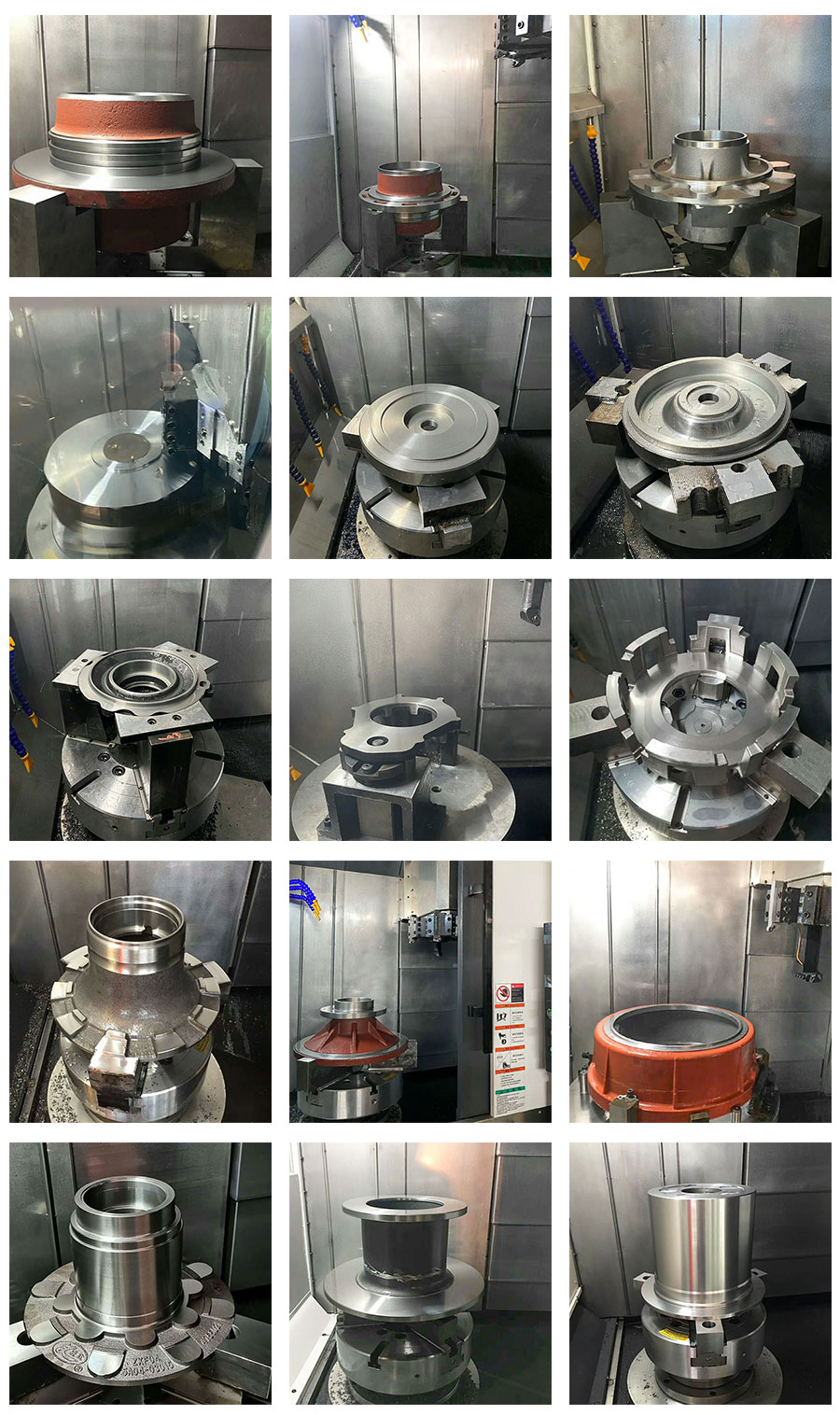

CNC vertical lathes are universal CNC vertical lathes, which are manufactured following the market demand, absorbing the home and abroad peer’s advanced technology, according to the international market latest trend to CNC vertical lathes. It applies to processing various complex spindles, jackets, disk, as well as interior lathe, external cylinder, conical face, arc, end face, grooving, chamfer, drilling hole, expanding hole, threads cutting. Especially for processing medium and small batch products. What’s more, it is with convenient installation, high processing efficiency, and low crap rate, good consistent in finished products, easy programming, and simple operation. Also it can decrease the request to worker’s technology. In a word, it is the ideal machine equipment for cars, motorbikes and other industries for short spindles, disc processing.

INQUIRY DOWNLOAD

Description Parameter VideoProduction

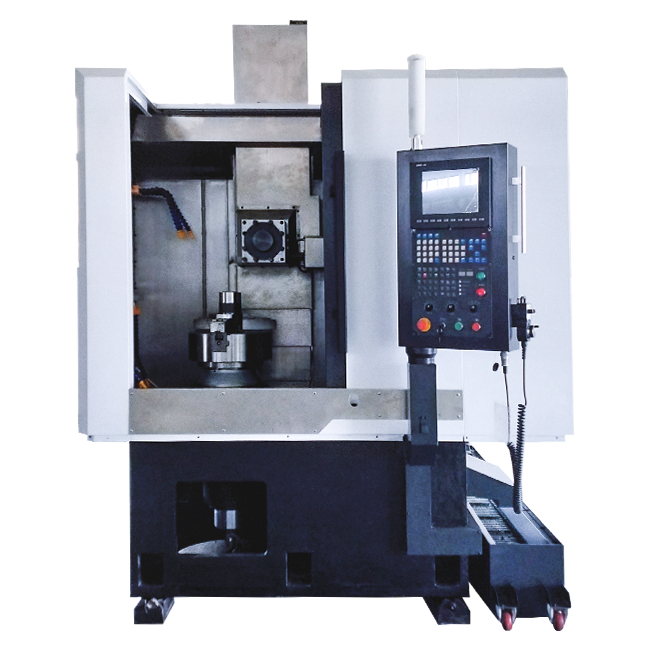

Vertical CNC Lathe
● The max. workpiece for our lathe is 500/600/1500 kg.

● Max. height of workpiece 700/800 mm.

● Both X and Z axes adopt precision linear guides from HIWIN.

● Both X and Z axes adopt precision ball screws from HIWIN with precision FAG ball screw bearings.

● Waterproof hydraulic chuck.

● Precision locknut from Yinsh.

● The precision of All our lathes is measured and compensated by RENISHAW laser interferometer, to make sure both positioning precision and repositioning precision are excellent.

● Hydraulic controlled doule tool toolpost, horizontal hydraulic turret, power tooling turret and milling power head are for option.

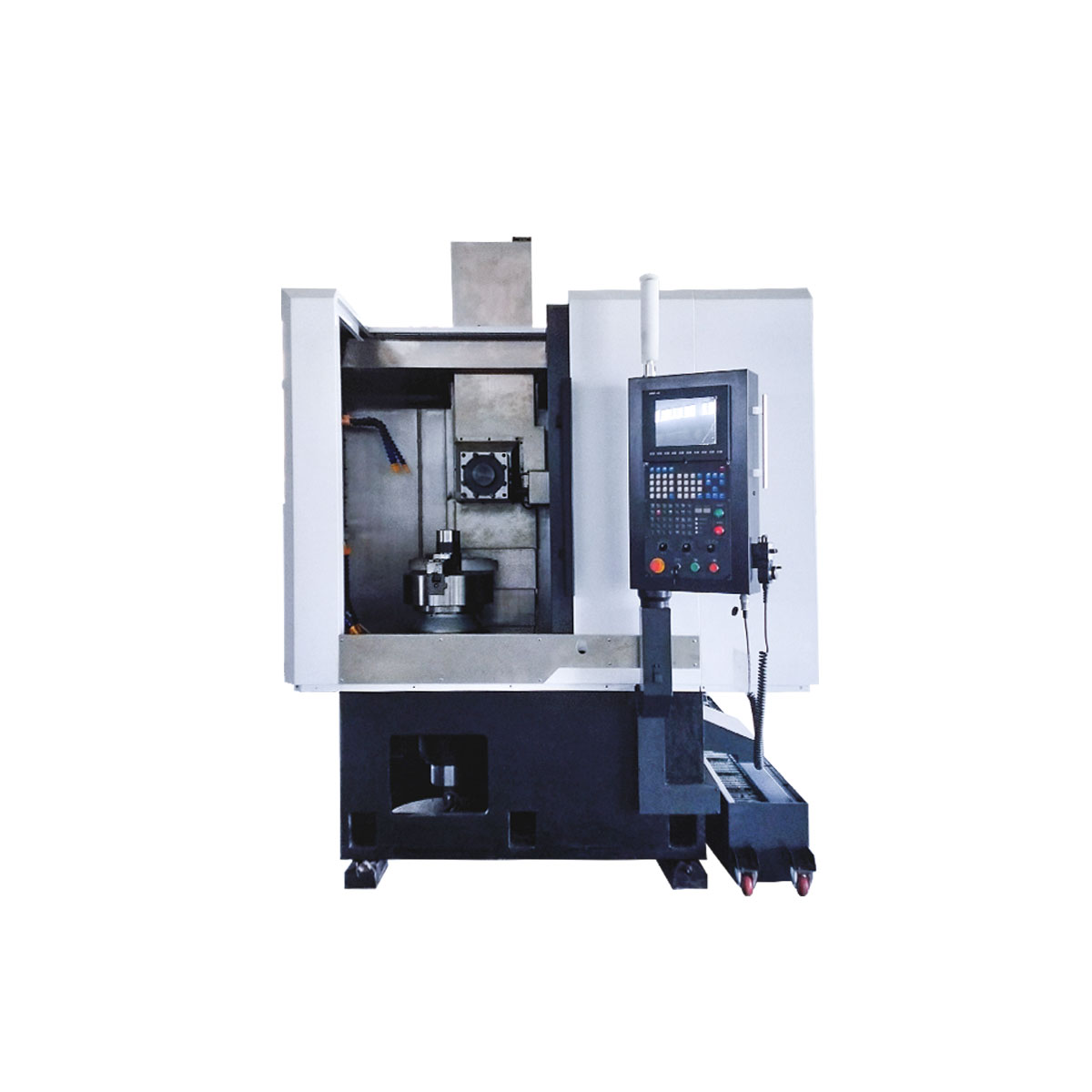

High precision vertical CNC Lathe

● X/Z axes repositioning accuracy 0.004 mm, X/Z axes positioning accuracy 0.008 mm, positioning accuracy of C-axis 0.001°

● Ultra-precision spindle, spindle nose runout 0.003/0.004 mm.

● The spindle is equipped with NSK precision bearings.

● Waterproof hydraulic chuck from AUTO STRONG.

● Hydraulic turret from LIO SHING.

● Both X and Z axes adopt precision linear guides from HIWIN.

● Both X and Z axes adopt precision ball screws from HIWIN with precision NSK ball screw bearings.

● Precision locknut from Yinsh.

● Hydraulic controlled doule tool toolpost, horizontal hydraulic turret, power tooling turret and milling power head are for option.

Vertical CNC Lathe

Item		Unit	VTL500	VTL700	VTL900	VTL1250
Capacity	Max. swing diameter	mm	φ500	φ770	φ970	φ1300
	Max. turning diameter	mm	φ500	φ700	φ900	φ1250
	Max. swing diameter over carriage	mm	φ500	φ400	φ600	φ800
	Max. height of workpiece	mm	700	700	700	800
	Max. weight of workpiece	kg	500	500	600	1500
	Rated power of main motor	kW	11	11	15	15
Spindle	Spindle speed range	r/min	50-1200	50-1200	50-800	20-300
	Speed ratio of reducer	-	1:4	1:4	1:4	1:4
	Synchronous belt reduction ratio	-	1:2.5	1:2.5	1:2.5	1:2.5
	Spindle nose type	-	A2-6	A2-8	A2-11	A2-11
Feed	Max. stroke of X-axis	mm	300	570	630	810
	Max. stroke of Z-axis	mm	500	750	750	850
	X-axis roller linear rail width	mm	35	45	45	55
	Z-axis roller linear rail width	mm	45	55	55	55
	X-axis ball screw diameter × pitch	mm	32×10	40×10	40×10	50×10
	Z-axis ball screw diameter × pitch	mm	40×10	50×10	50×10	50×10
	Feeding speed of X-axis/Z-axis	mm/min	0.05-4000	0.05-4000	0.05-4000	0.05-4000
	Rapid traverse speed of X-axis/Z-axis	m/min	15	15	15	15
	Feeding motor torque of X-axis/Z-axis	N·m	11	11	20	27
Turret	Cross section of tool shank	mm	25×25	25×25	32×32	32×32
	Turret type	-	H8	H8	H8	H8
	Boring bar diameter	mm	φ32	φ32	φ40	φ40
Precision	Repeat positioning accuracy of X-axis/Z-axis	mm	0.01	0.01	0.01	0.01
Precision	Positioning accuracy of X-axis/Z-axis	mm	0.02	0.02	0.02	0.02
Others	CNC system	-	Fanuc 0i-TF(5)	Fanuc 0i-TF(5)	Fanuc 0i-TF(5)	Fanuc 0i-TF(5)
	Length×Width×Height	mm	1205×1200×2430	1500×1360×2726	1550×1760×3067	1650×1860×3070
	Net weight	kg	5000	6600	8600	9600

High precision vertical CNC Lathe

Item		Unit	VLA450	VLA550	VLA650	VLA850
Capacities	Max. swing diameter	mm	φ600	φ760	φ840	φ950
Capacities	Max. turning diameter	mm	φ450	φ550	φ650	φ850
Spindle	Spindle nose	-	A2-8	A2-8	A2-11	A2-11
	Spindle bore	mm	φ72	φ86	φ86	φ100
	Spindle speed	r/min	2500	2000	1500	1200
	Inner diameter of spindle front bearing	mm	φ120	φ130	φ160	φ180
	Chuck diameter	mm/inch	φ304/12	φ381/15	φ450/18	φ610/24
	Spindle end radial runout	mm	0.003	0.003	0.003	0.004
Turret	Cross section of tool shank	mm	25×25	25×25	25×25	32×32
	Boring bar diameter	mm	φ40	φ50	φ50	φ50
	Turret type	-	H8	H8	H8	H8
	Tool disc swing	mm	400	450	480	520
Stroke	Stroke of X-axis	mm	270	350	380	880
Stroke	Stroke of Z-axis	mm	600	700	850	950
Servo motor	Spindle servo motor power	kW	15	18.5	18.5	18.5
	Main motor max. torque	N.m	180	240	240	275
	Spindle max. torque	N·m	450	600	720	825
	Servo motor power of X-axis	kW	2.5	3	3	3
	Servo motor torque of X-axis	N·m	Stall torque 20/ Max. torque 45	Stall torque 27/ Max. torque 68	Stall torque 27/ Max. torque 68	Stall torque 30/ Max. torque 83
	Servo motor power of Z-axis	kW	3	3	3	3
	Servo motor torque of Z-axis	N·m	Stall torque 27/ Max. torque 68	Stall torque 36/ Max. torque 90	Stall torque 36/ Max. torque 90	Stall torque 38/ Max. torque 130
Rapid traverse	Rapid traverse speed of X-axis	m/min	16	15	15	12
Rapid traverse	Rapid traverse speed of Z-axis	m/min	16	15	15	12
Accuracy	Repeat positioning accuracy of X-axis/Z-axis	mm	0.004	0.004	0.004	0.004
Accuracy	Positioning accuracy of X-axis/Z-axis	mm	0.008	0.008	0.008	0.008
Hydraulic station	Hydraulic station volume	L	80	80	80	80
	Motor power	kW	2.2	3	3.75	3.75
	Flow rate	L/min	30	30	40	40
Others	CNC system	-	FANUC 0i-TF (5)	FANUC 0i-TF (5)	FANUC 0i-TF (5)	FANUC 0i-TF (5)
	Length×Width×Height	mm	1680×3320×2700	1850×3500×2700	1900×3620×2900	2500×3760×3300
	Net weight	kg	6000	8000	8600	11000
