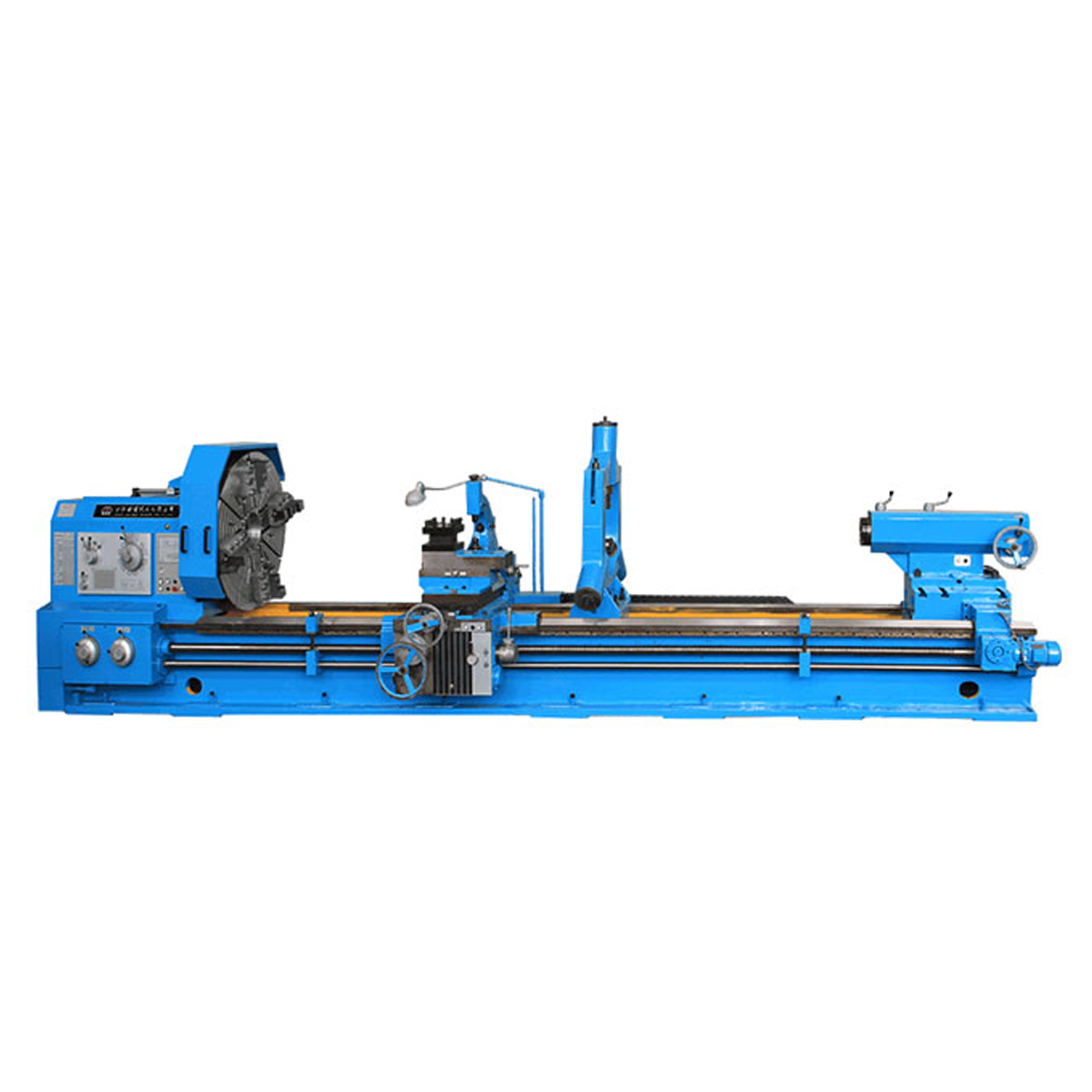

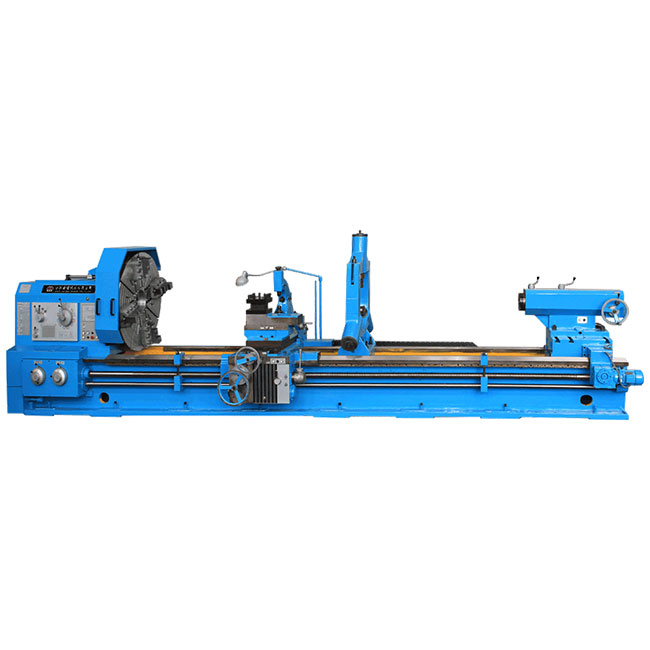

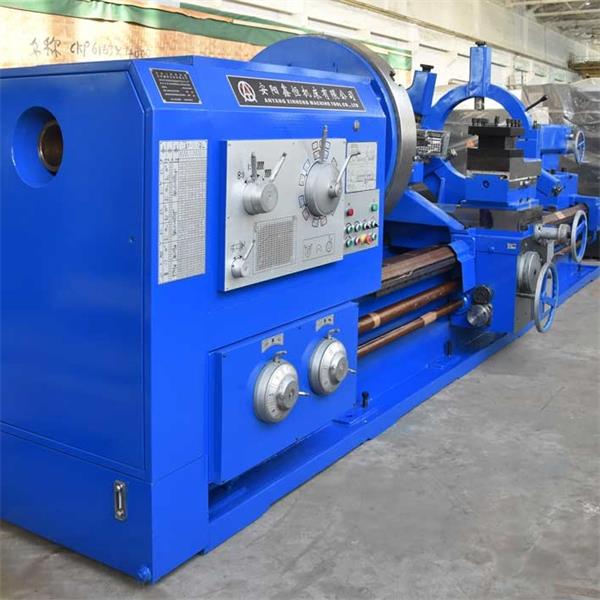

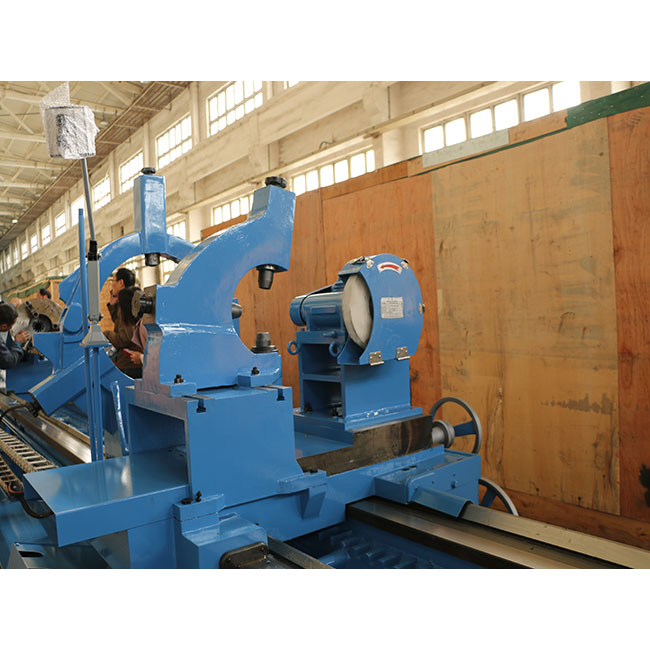

Large conventional lathe

The conventional lathe machine is universal lathe which is suitable for different kinds of industries. The conventional lathe has more flexibility in machining than other machines.

INQUIRY DOWNLOAD

Description Parameter VideoProduction

The conventional lathe machine is universal lathe which is suitable for different kinds of industries. The conventional lathe has more flexibility in machining than other machines.

Features:
Span of guideway: 755mm

● The max. workpiece for our lathe is 6000 kg.

● Our chuck is φ1000 mm made by Hohhot, the best and most famous chuck manufacturer in China, our chuck is durable.

● Our lathe guide is quenched by induction quenching device, hardened layer thickness is 2-3mm, hardness is 52 HRC.

● There are oblique chip outlets in our lathe bed, easy for chip removing.

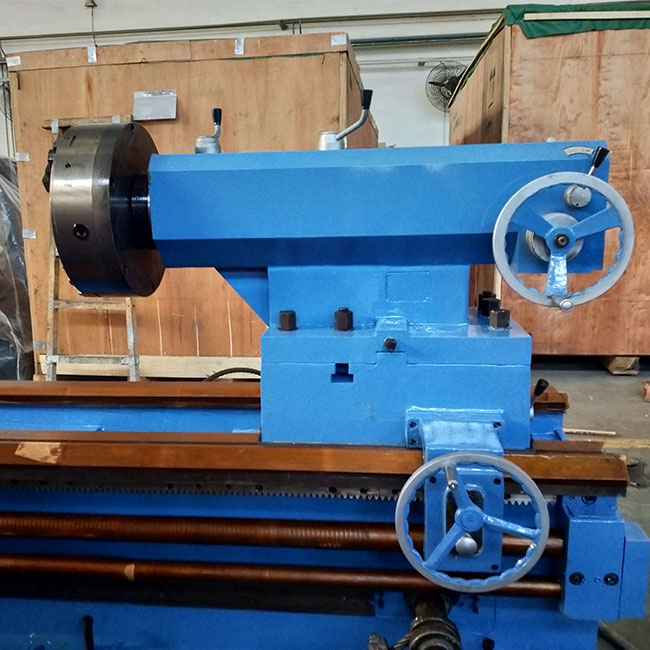

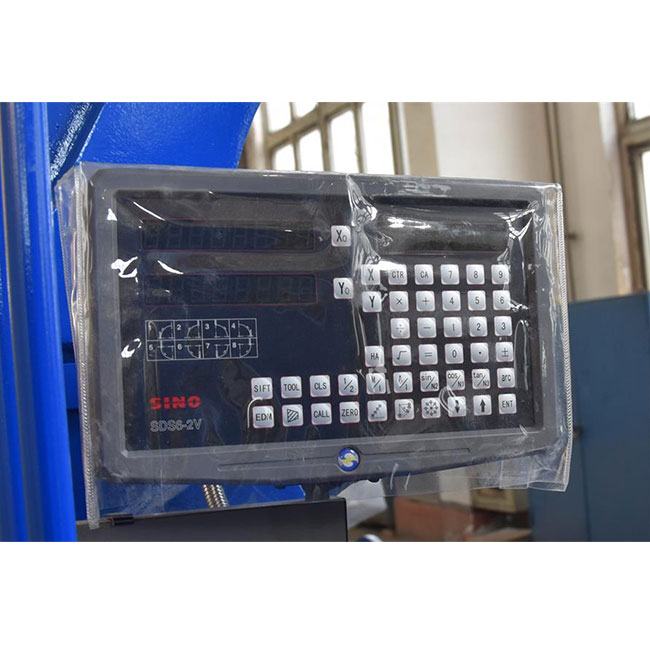

● DRO, quick change toolpost, grinding attachment, milling power head, rotary tailstock, motorized tailstock are for option.

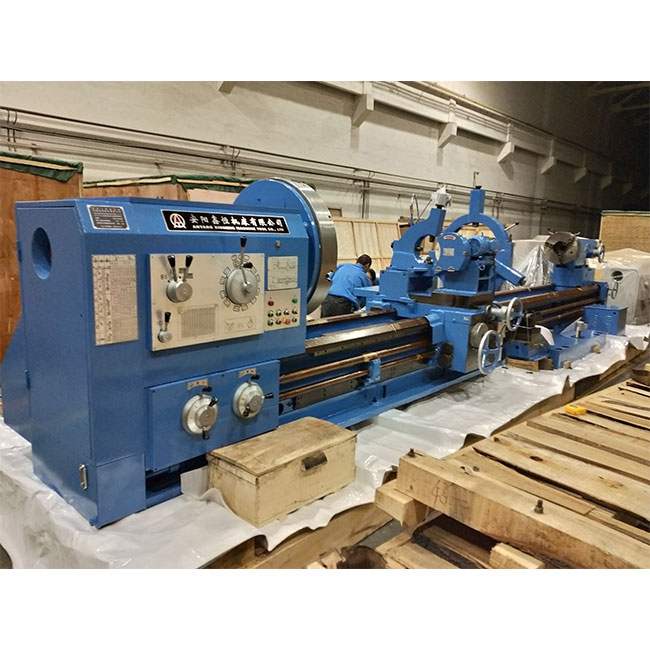

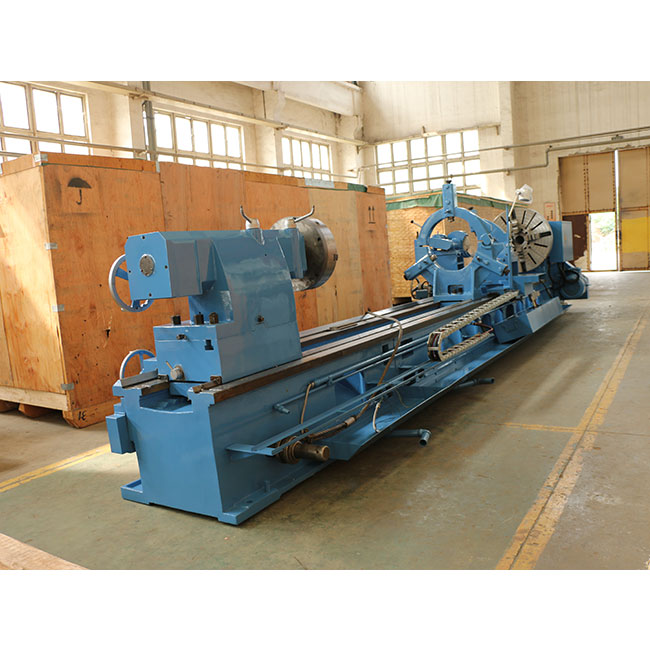

Span of guideway: 970mm

● The max. workpiece for our lathe is 10 ton.

● Our lathe guide is quenched by induction quenching device, hardened layer thickness is 2-3mm, hardness is 52 HRC.

● We have Germany made high precision lathe guide grinding machine to ensure the guide precision.

● Our chuck is K78 series φ1250 mm heavy duty chuck made by Hohhot, the best and most famous chuck manufacturer in China.

● Motorized tailstock.

● DRO, grinding attachment, milling power head, rotary tailstock, tailstock chuck are for option.

Span of guideway: 755mm

Item		Unit	CW61100B	CW61125B	CW61140B	CW61160B
Capacity	Swing over bed	mm	φ1000	φ1250	φ1400	φ1640
	Swing over carriage	mm	φ615	φ865	φ1015	φ1250
	Max. length of workpiece	mm	1500/3000/5000/6000	1500/3000/5000/6000	1500/3000/5000/6000	1500/3000/5000/6000
	Max. turning length	mm	1300/2800/4800/5800	1300/2800/4800/5800	1300/2800/4800/5800	1300/2800/4800/5800
	Span of guideway	mm	755	755	755	755
	Max. weight of workpiece	ton	6	6	6	6
Spindle	Spindle nose type	-	A2-15	A2-15	A2-15	A2-15
	Front taper of spindle hole	-	1:20/Metric 140	1:20/Metric 140	1:20/Metric 140	1:20/Metric 140
	Spindle bore	mm	φ130	φ130	φ130	φ130
	No. of spindle speeds	-	Forward 21; Reverse 12	Forward 21; Reverse 12	Forward 21; Reverse 12	Forward 21; Reverse 12
	Range of spindle speeds	r/min	Forward 3.15-315; Reverse 3.5-291	Forward 3.15-315; Reverse 3.5-291	Forward 3.15-315; Reverse 3.5-291	Forward 3.15-315; Reverse 3.5-291
Toolpost	Cross section of tool shank	mm	45×45	45×45	45×45	45×45
	Max.stroke of upper Toolpost	mm	300	300	300	300
	Max. stroke of lower Toolpost	mm	520	580	580	630
Feed	No. of longitudinal and transverse feeding	-	56 kinds each	56 kinds each	56 kinds each	56 kinds each
	No. and rang of metric threads	-	44; 1-120	44; 1-120	44; 1-120	44; 1-120
	No. and rang of inch threads	-	31; 28-1/4	31; 28-1/4	31; 28-1/4	31; 28-1/4
	No. and rang of modulus threads	-	45; 0.5-60	45; 0.5-60	45; 0.5-60	45; 0.5-60
	No. and rang of diameter pitch threads	-	38; 1/2-56DP	38; 1/2-56DP	38; 1/2-56DP	38; 1/2-56DP
Tailstock	Tailstock quill diameter	mm	160	160	160	160
	Tailstock quill taper	-	MT6	MT6	MT6	MT6
	Tailstock quill max. stroke	mm	300	300	300	300
Others	Main motor power	kW	22	22	22	22
	Width×Height	mm	2150×1700	2150×1825	2150×2100	2150×2150
	Length	mm	4600/6100/8100/9100	4600/6100/8100/9100	4600/6100/8100/9100	4600/6100/8100/9100
	Net weight	kg	9200/10700/12100/12800	10200/11800/14800/15500	10300/11900/14900/15600	10500/12100/15100/16600
	Note: swing over bed/swing over gap/distance between centers (1500mm-12000mm) can be customized.

Span of guideway: 970mm

Item		Unit	CW61125	CW61140	CW61160
Capacity	Swing over bed	mm	φ1250	φ1400	φ1600
	Swing over carriage	mm	φ865	φ1010	φ1210
	Max. length of workpiece	mm	3000/4000/5000/6000	3000/4000/5000/6000	3000/4000/5000/6000
	Max. turning length	mm	2800/3800/4800/5800	2800/3800/4800/5800	2800/3800/4800/5800
	Span of guideway	mm	970	970	970
	Max. weight of workpiece	ton	10	10	10
Spindle	Front taper of spindle hole	-	Metric 140	Metric 140	Metric 140
	Spindle bore	mm	φ130	φ130	φ130
	No. of spindle speeds	-	Forward 21; Reverse 12	Forward 21; Reverse 12	Forward 21; Reverse 12
	Range of spindle speeds	r/min	Forward 3.15-315; Reverse 3.5-291	Forward 3.15-315; Reverse 3.5-291	Forward 3.15-315; Reverse 3.5-291
Toolpost	Cross section of tool shank	mm	45×45	45×45	45×45
	Max.stroke of upper Toolpost	mm	300	300	300
	Max. stroke of lower Toolpost	mm	650	650	650
Feed	No. of longitudinal and transverse feeding	-	56 kinds each	56 kinds each	56 kinds each
	No. and rang of metric threads	-	44; 1-120	44; 1-120	44; 1-120
	No. and rang of inch threads	-	31; 28-1/4	31; 28-1/4	31; 28-1/4
	No. and rang of modulus threads	-	45; 0.5-60	45; 0.5-60	45; 0.5-60
	No. and rang of diameter pitch threads	-	38; 1/2-56DP	38; 1/2-56DP	38; 1/2-56DP
Tailstock	Tailstock quill diameter	mm	220	220	220
	Tailstock quill taper	-	MT6	MT6	MT6
	Tailstock quill max. stroke	mm	300	300	300
Others	Main motor power	kW	22	22	22
	Width×Height	mm	1995×2175	1995×2325	1995×2525
	Length	mm	6020/7020/8020/9020	6020/7020/8020/9020	6020/7020/8020/9020
	Net weight	kg	14500/15800/17000/18300	15000/16300/17500/18800	15500/16800/18000/19300
	Note: swing over bed/distance between centers (3000mm-16000mm) can be customized.
