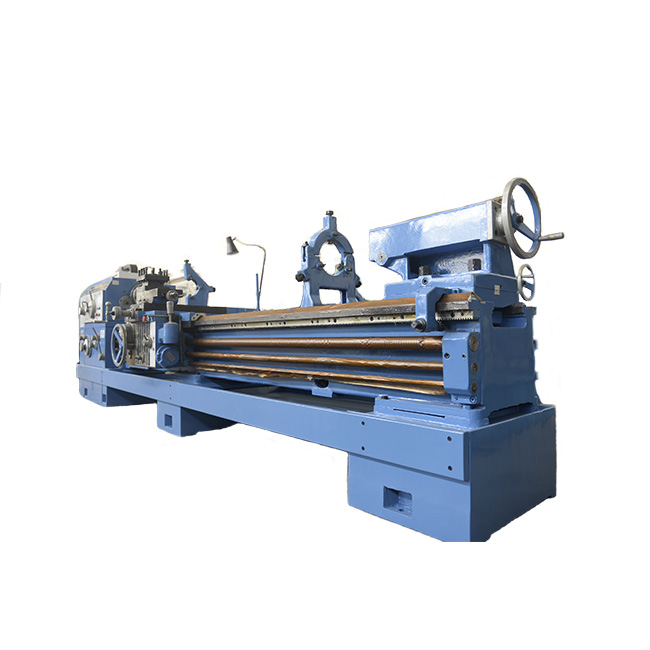

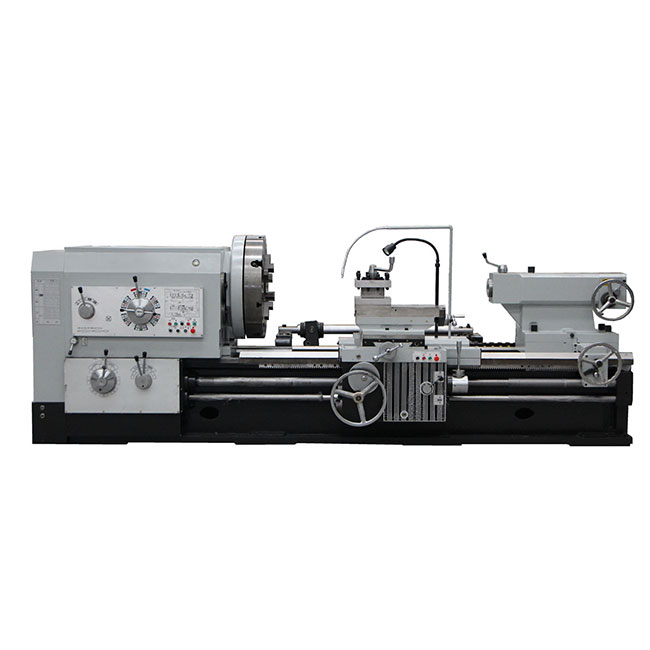

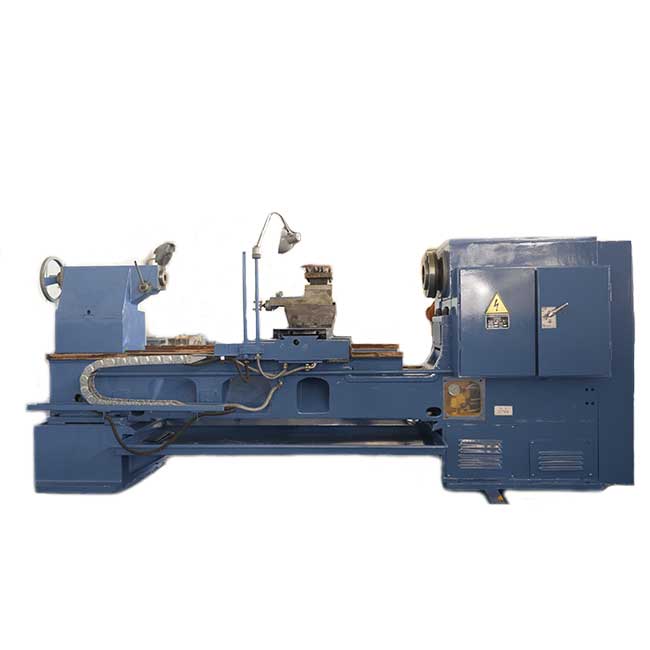

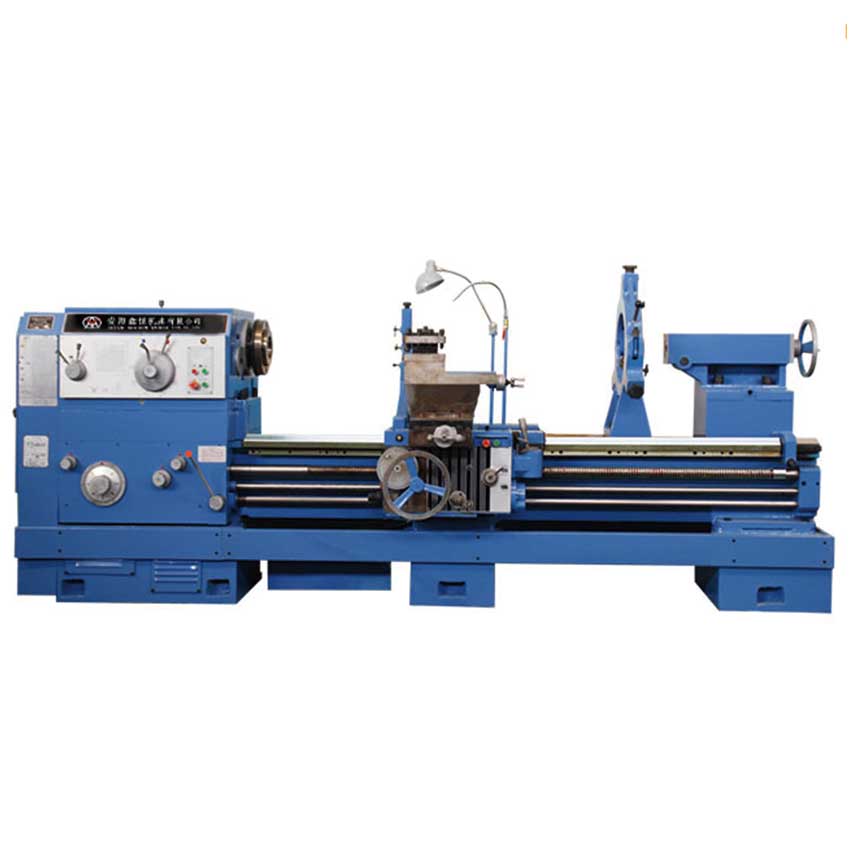

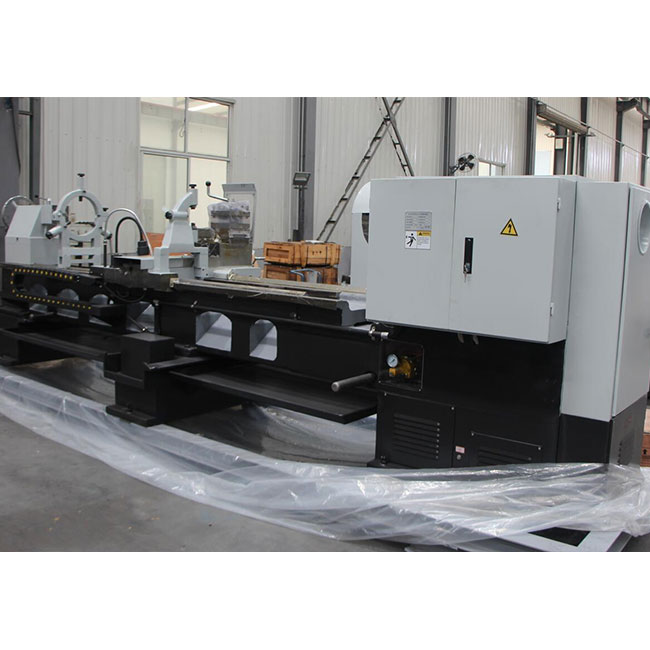

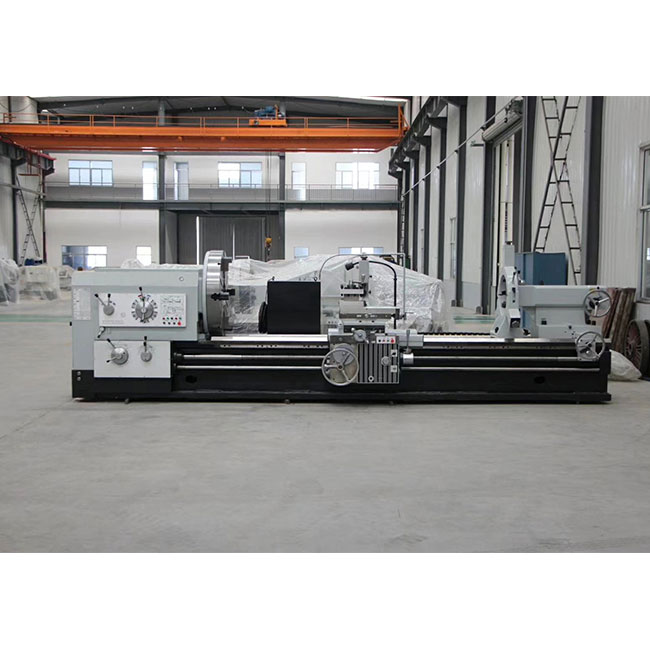

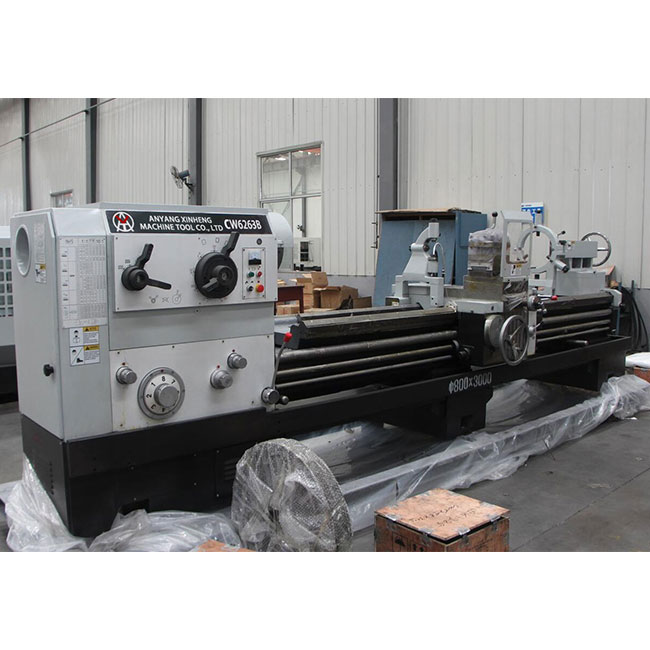

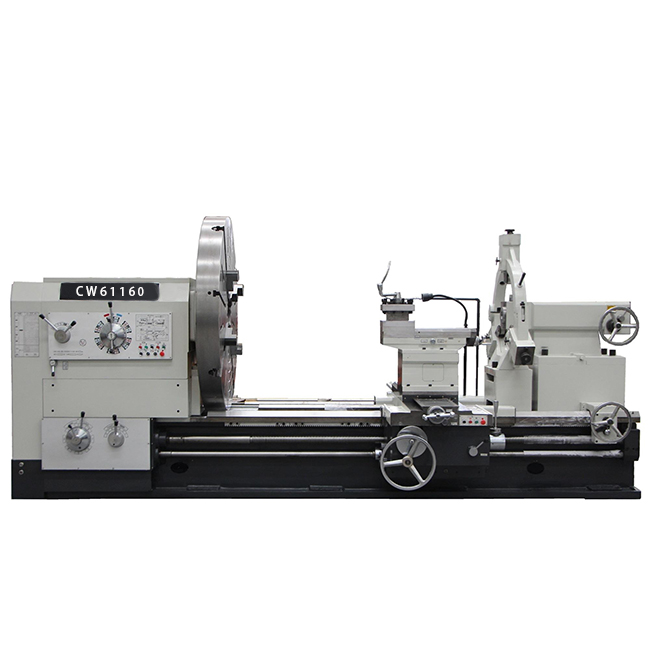

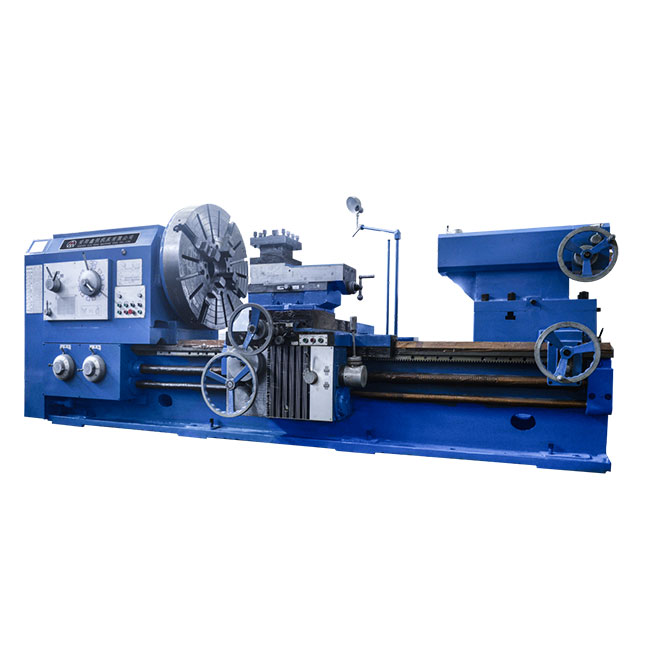

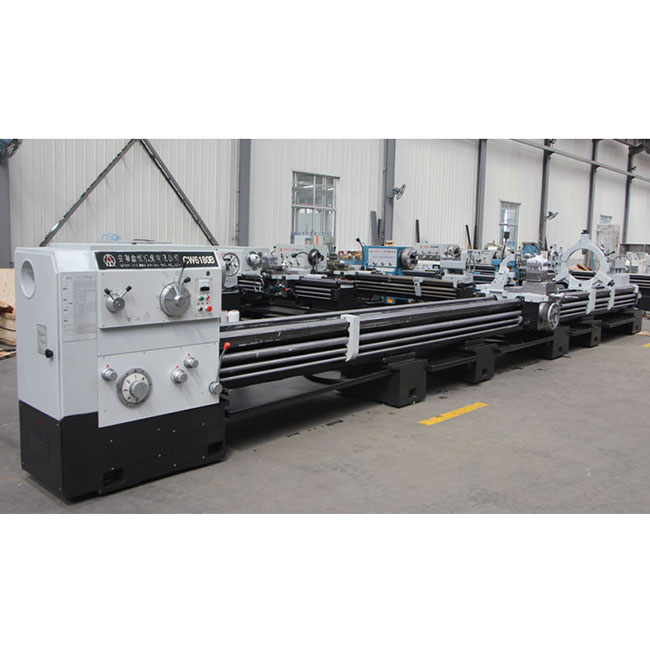

Conventional lathe machine

The conventional lathe machine is universal lathe which is suitable for different kinds of industries. The conventional lathe has more flexibility in machining than other machines.

Functions:
1. Outer cylinder turning, cone turning, curved surface turning, inner hole turning, end face turning, chamfering and other machining;
2. Metric thread, inch thread, modular thread, pitch thread cutting;
3. Shot and long taper turning;
4. Drilling, boring, trepanning and grooving;
5. Left hand turning and right hand turning;
6. Even grinding and milling with grinding and milling attachment.

Characteristics:
1. Our conventional lathe’ load weight is better than others with similar specification. The max. workpiece that can be processed by our conventional lathe is 1500kg, 2000kg, 2500kg,3000kg, 6000kg and 8000kg; We also have heavy duty conventional lathe with max. workpiece weight 10 ton to 80 ton.
2. The high torsion resistant horizontal bed is made of high quality cast iron, the guide  is high frequency induction quenched with guide width 500 mm, 600 mm and 755 mm;
3. Distance between centers up to from 750 mm to 12000 mm, any distance can be customized;
4. Our lathe bed is equipped with tilt chip discharge, much easy for chip removing;
5. The TSF soft strip is applied to the guide which greatly reduces the friction coefficient and prolong the service life;
6. The motion pairs of the conventional lathe are automatically lubricated by the centralized automatic lubrication pump;
7. Transmission system, hydraulic system and electrical system are stable enough to ensure good machine performance;
8. Equipped with mechanical interlocking protection device to ensure safety;

Optional accessories:
1. Gap bed;
2. Digital readout (DRO);
3. Taper attachment;
4. Grind attachment vacuum dust collector;
5. Milling attachment;
6. Rotary tailstock, motorized tailstock, pneumatic tailstock and hydraulic tailstock;
7. Non-standard chuck and steady rest;
8. Tailstock chuck;
9. Others.


Span of guideway: 550mm & 600mm
