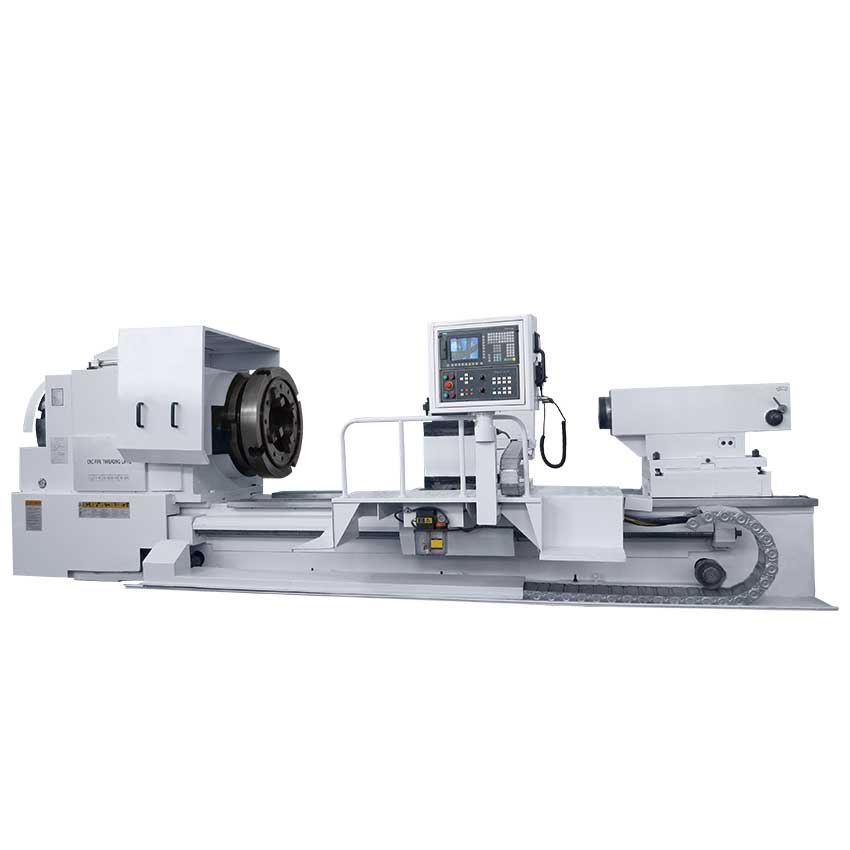

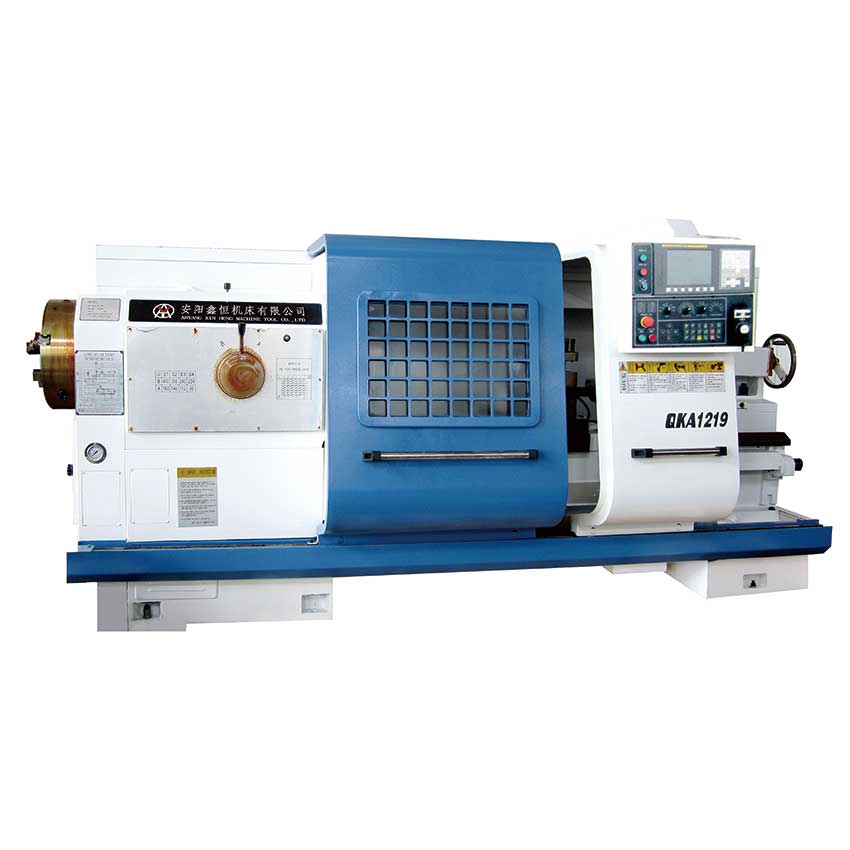

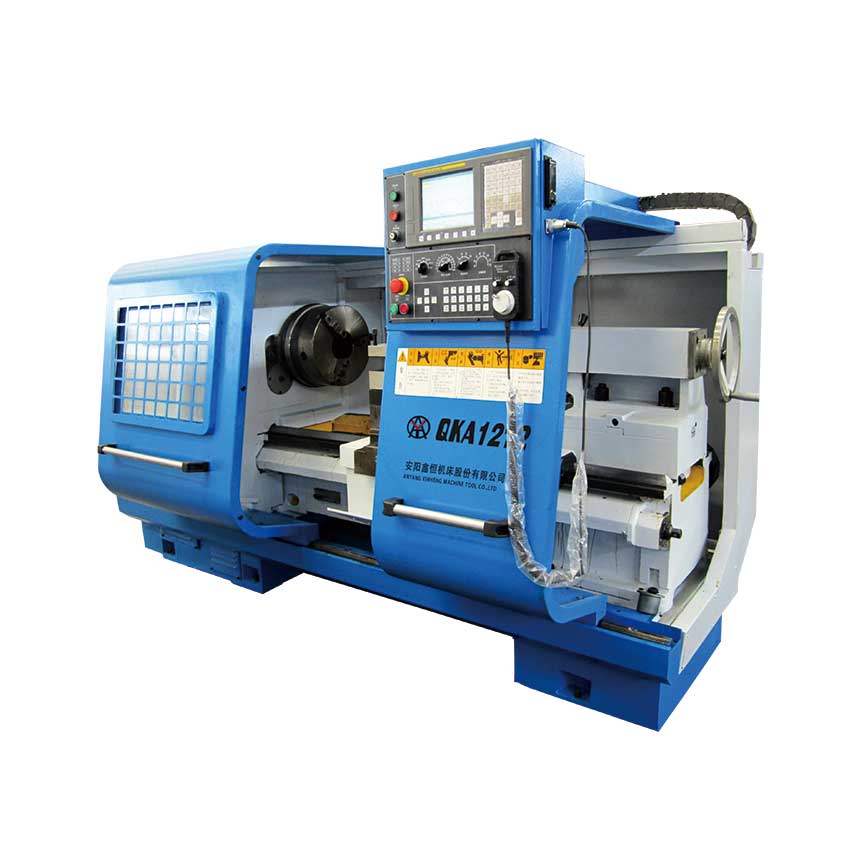

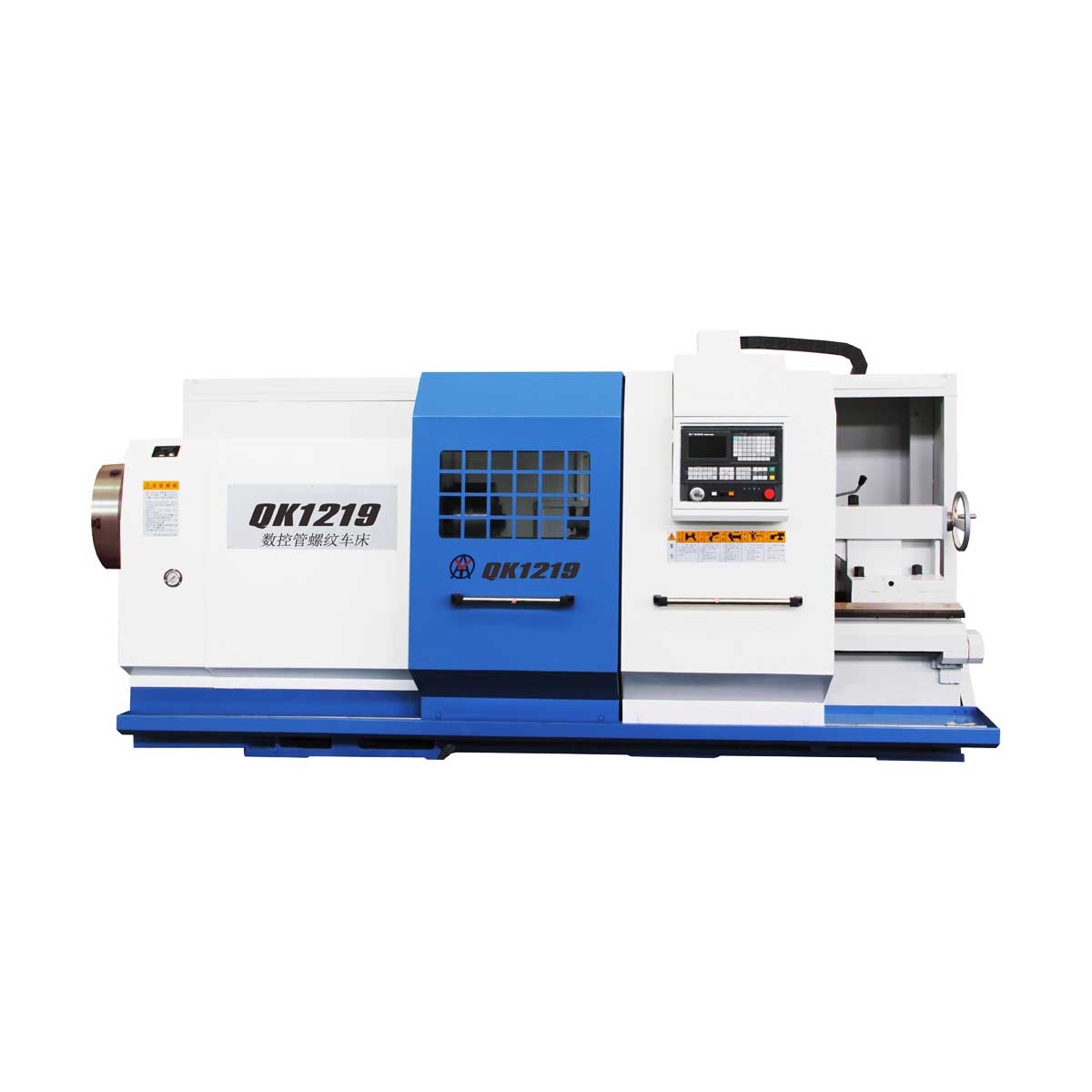

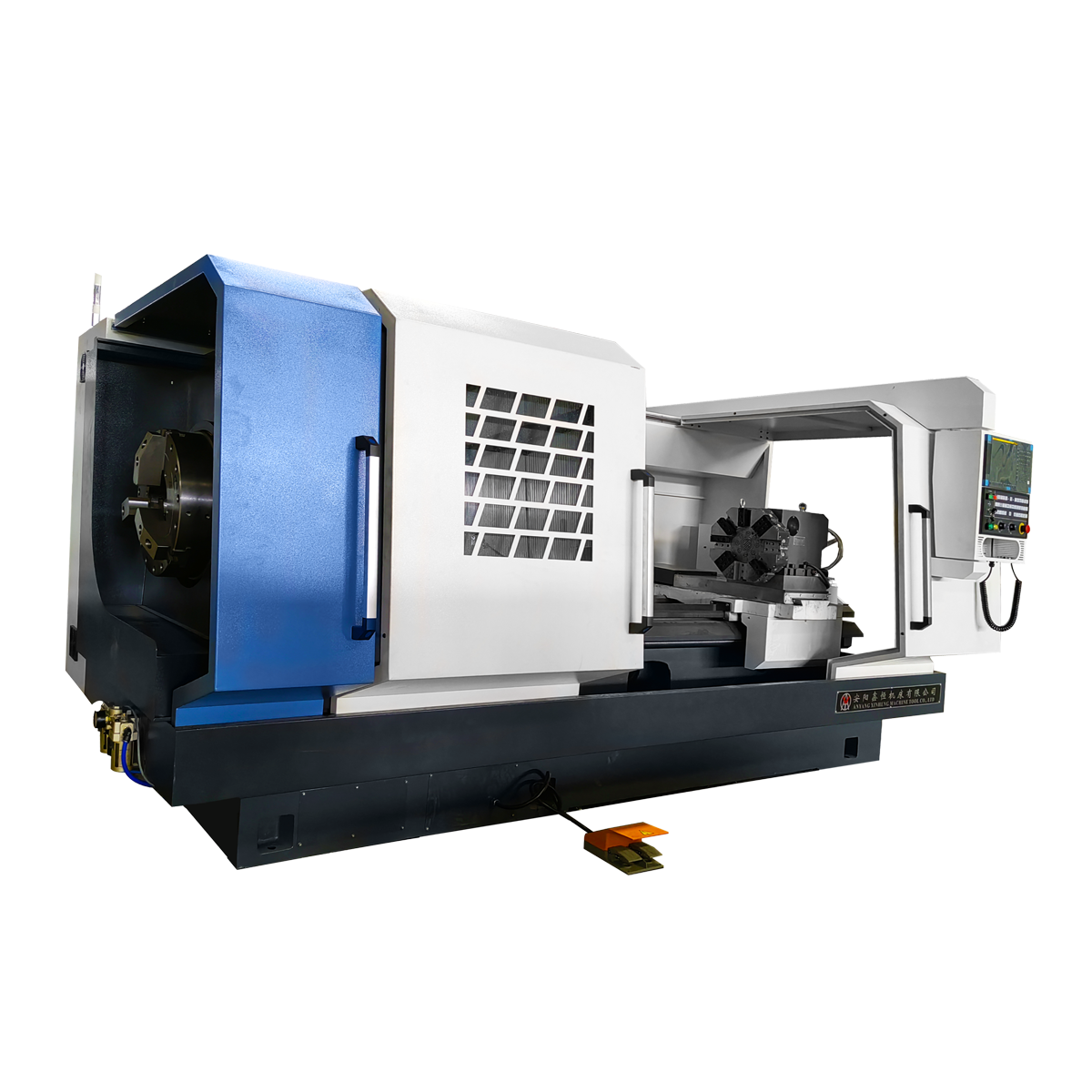

CNC oil country lathe is mainly developed for the pipe thread turning in the oilfield and is suitable for turning of various pipe threads. CNC oil country lathe is also known as double chuck lathe, hollow spindle lathe, big bore lathe, large bore lathe and pipe threading lathe.

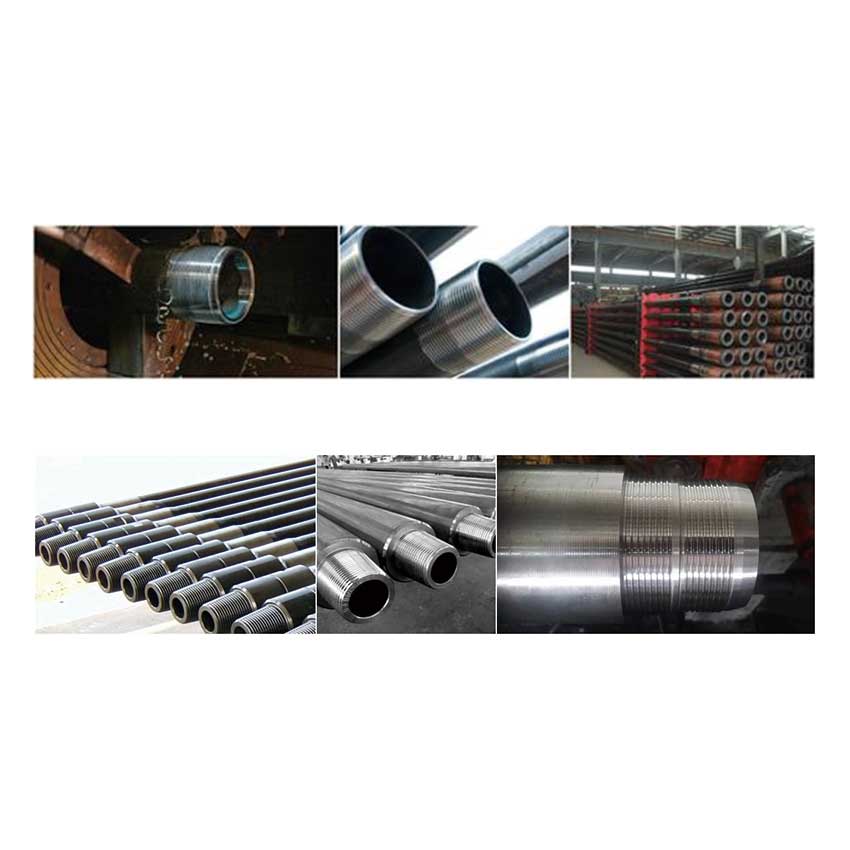

The most visible feature of CNC oil country lathe is installed one front chuck and another rear chuck. And the spindle bore is much bigger than ordinary CNC lathe. So it is widely used to machine all kinds of extremely long workpieces, such as oil tubes API 5CT, oil casings API 5CT, drill pipes API 5DP, drill collars, couplings, nipples, as well as ordinary shafts, cylinders, disk and so on.
Features
1. Spindle bore diameter: 130/200/240/270/330/360/390/440/470/510/640mm.
2. We have different CNC system to meet different demand of customers, such as Fanuc 0i-TF (5), Fanuc 0i-TF (1), SINUMERIK 808D, SINUMERIK 828D, GSK980TDC, etc.
3. Original X/Z axle servo motors from Fanuc/ SINUMERIK/GSK.
4. Thread cut by our CNC oil country lathe 100% complies with standard API 5B.
5. Spindle speed is stepless in all speed sections.
6. Maximum workpiece weight: 1/3/4/6/8/10/16 ton.
7. Pneumatic/hydraulic chucks are optional.
8. Rear supporter or automatic charging and discharge device are available.
9. Equipped with standard V4 turret, V6/H6/H8/H12 turrets available.
