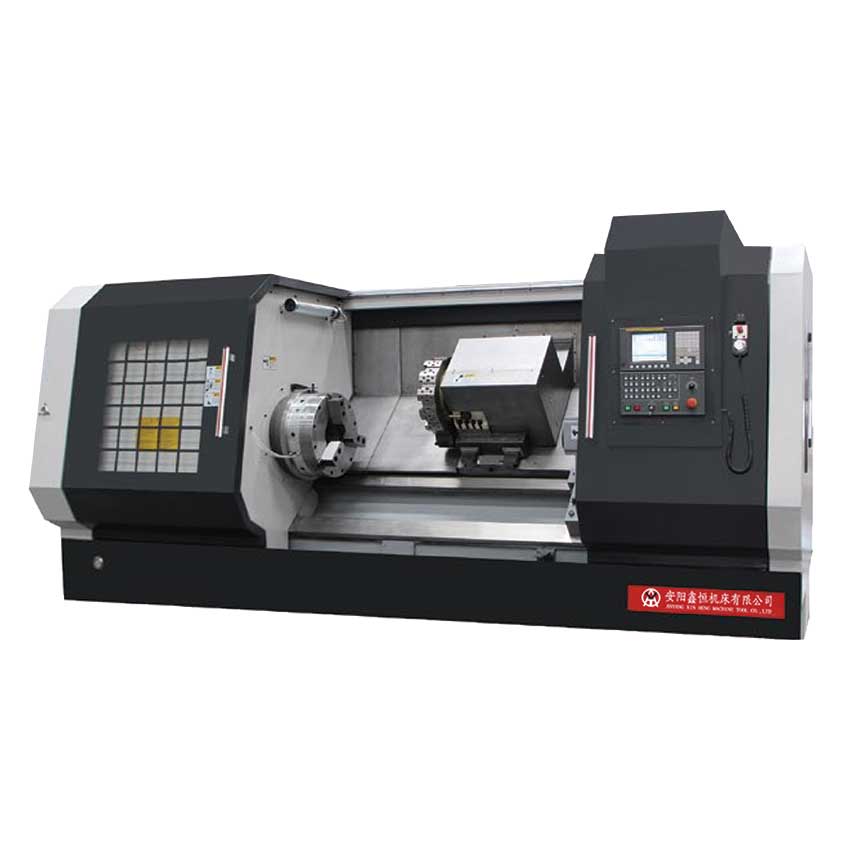

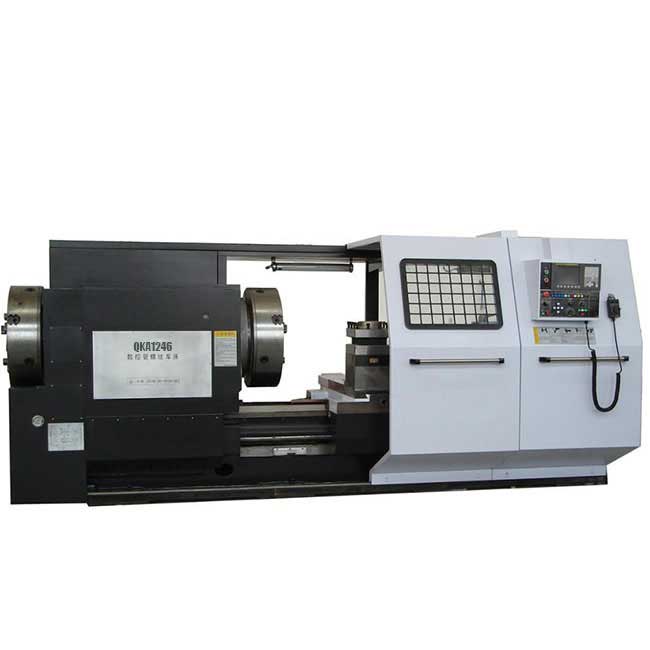

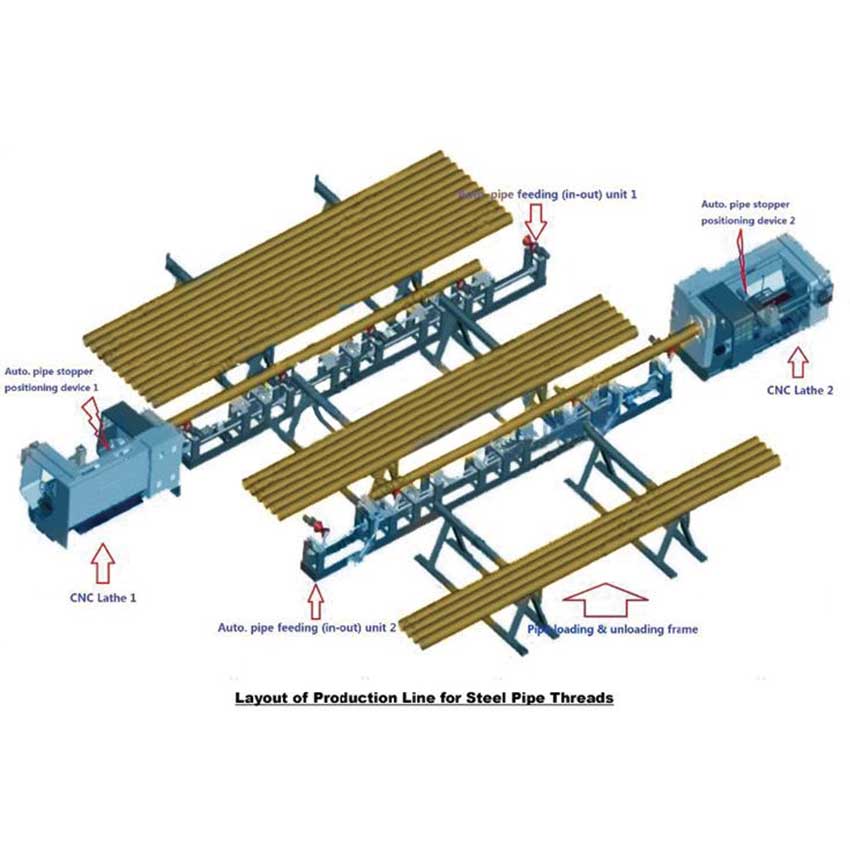

Slant bed CNC lathe series is the new type automatic lathe with high precision and high efficiency, it equips with advanced accessories such as servo or power turret etc., this series lathe is capable of processing arc, straight and oblique cylinder workpiece, as well as turning threads etc.
Slant bed CNC lathe series is the new type automatic lathe with high precision and high efficiency, it equips with advanced accessories such as servo or power turret etc., this series lathe is capable of processing arc, straight and oblique cylinder workpiece, as well as turning threads etc.
Item
Unit
QKX1212
QKX1215
QKX1222
QKX1227
QKX1238
QKX1250
Capacity
Bed slant angle
°
45
45
45
45
45
45
Swing over bed
mm
Φ630
Φ630
Φ680
Φ900
Φ1200
Φ1200
Max. turning diameter
mm
Φ600
Φ600
Φ600
Φ600
Φ710
Φ710
Swing over cross slide
mm
Φ440
Φ440
Φ450
Φ600
Φ710
Φ710
Distance between centers
mm
1000
1000
1000
1000
1000
4000
Pipe threading range
mm
Φ110
Φ140
Φ220
Φ300
Φ380
Φ500
Spindle
Spindle nose type
-
A2-11
A2-11
A2-15
Short cylinder
Thread
Thread
Spindle bore
mm
Φ120
Φ150
Φ230
Φ305
Φ390
Φ520
Max. spindle speed
r/min
800
800
550
350
190
190
Turret
Cross section of tool shank
mm
32×32
32×32
32×32
32×32
32×32
32×32
Turret type
-
H8 Hydraulic
H8 Hydraulic
H8 Hydraulic
H8 Hydraulic
H8 Hydraulic
H8 Hydraulic
Feed
Stroke of X-axis
mm
335
335
350
375
375
375
Stroke of Z-axis
mm
1100
1100
1140
1250
1250
3750
Rapid traverse speed of X-axis
mm/min
4000
4000
4000
10000
10000
10000
Rapid traverse speed of Z-axis
mm/min
6000
6000
6000
12000
12000
12000
Tailstock
Tailstock quill diameter
mm
Φ130
Φ130
Φ140
Φ170
Φ170
Φ170
Tailstock quill taper
-
MT5
MT5
MT6
MT6
MT6
MT6
Tailstock quill max. stroke
mm
100
100
200
180
180
180
Power system
Main motor power
kW
15
15
22
22
22
22
Coolant pump motor power
kW
0.55
0.55
0.55
0.55
0.55
0.55
Others
Width×Height
mm
2050×2300
2050×2300
2100×2300
2182×2100
2482×2300
2482×2300
Length
mm
4850
4850
6600
6700
7000
10000
Net weight
kg
7500
7500
12000
14300
21500
28000
Note: swing over bed/distance between centers can be customized.
Item
Unit
QKX1219J
QKX1222J
QKX1225J
QKX1227J
Capacity
Bed slant angle
°
45
45
45
45
Swing over bed
mm
Φ600
Φ600
Φ600
Φ600
Max. turning diameter
mm
Φ450
Φ450
Φ450
Φ450
Swing over cross slide
mm
Φ450
Φ450
Φ450
Φ450
Distance between centers
mm
-
-
-
-
Pipe threading range
mm
Φ190
Φ220
Φ250
Φ275
Spindle
Spindle nose type
-
Short cylinder
Short cylinder
Short cylinder
Short cylinder
Spindle bore
mm
Φ200
Φ225
Φ255
Φ280
Max. spindle speed
r/min
550
550
450
450
Turret
Cross section of tool shank
mm
32×32
32×32
32×32
32×32
Turret type
-
H8 Hydraulic
H8 Hydraulic
H8 Hydraulic
H8 Hydraulic
Feed
Stroke of X-axis
mm
350
350
350
350
Stroke of Z-axis
mm
600
600
600
600
Rapid traverse speed of X-axis
mm/min
4000
4000
4000
4000
Rapid traverse speed of Z-axis
mm/min
6000
6000
6000
6000
Tailstock
Tailstock quill diameter
mm
Without tailstock
Without tailstock
Without tailstock
Without tailstock
Tailstock quill taper
-
-
-
-
-
Tailstock quill max. stroke
mm
-
-
-
-
Power system
Main motor power
kW
22
22
22
22
Coolant pump motor power
kW
0.55
0.55
0.55
0.55
Others
Width×Height
mm
2250×2350
2250×2350
2250×2350
2250×2350
Length
mm
5100 (including chip conveyor)
5100 (including chip conveyor )
5100 (including chip conveyor)
5100 (including chip conveyor)
Net weight
kg
10300
10500
11300
11500
Note: swing over bed/distance between centers can be customized.

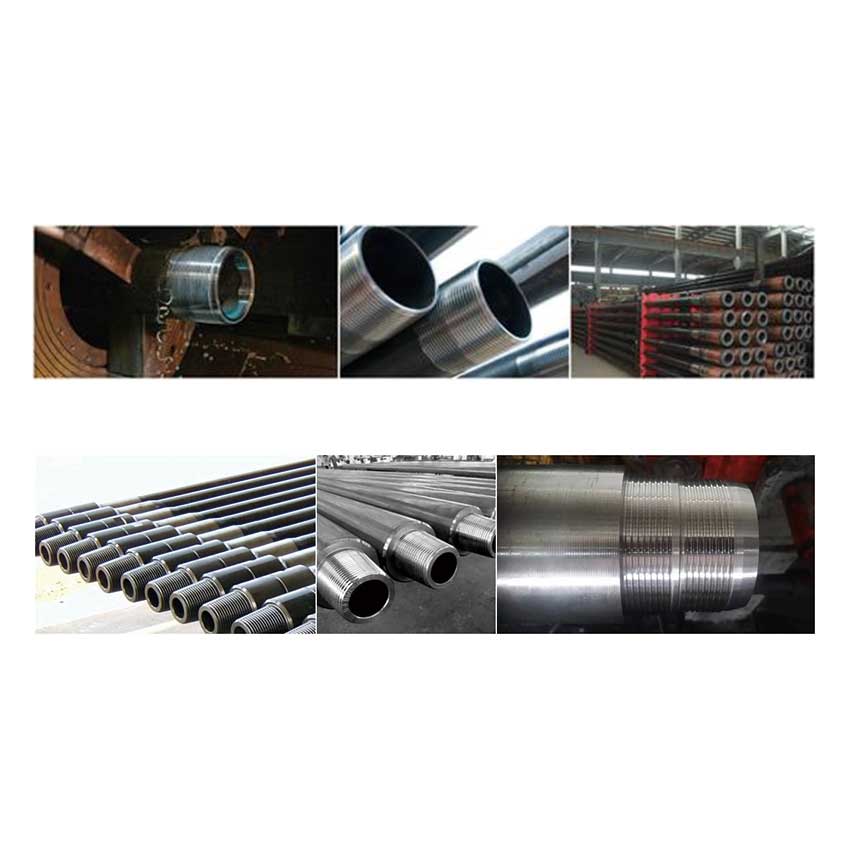

Thread type
60°general pitch threads
55°general pitch threads
60°ISO metric threads
Unified threads(American standard)
Whitworth threads
American standard taper pipe threads
NPTF
TR
ACME
SACME
RD
