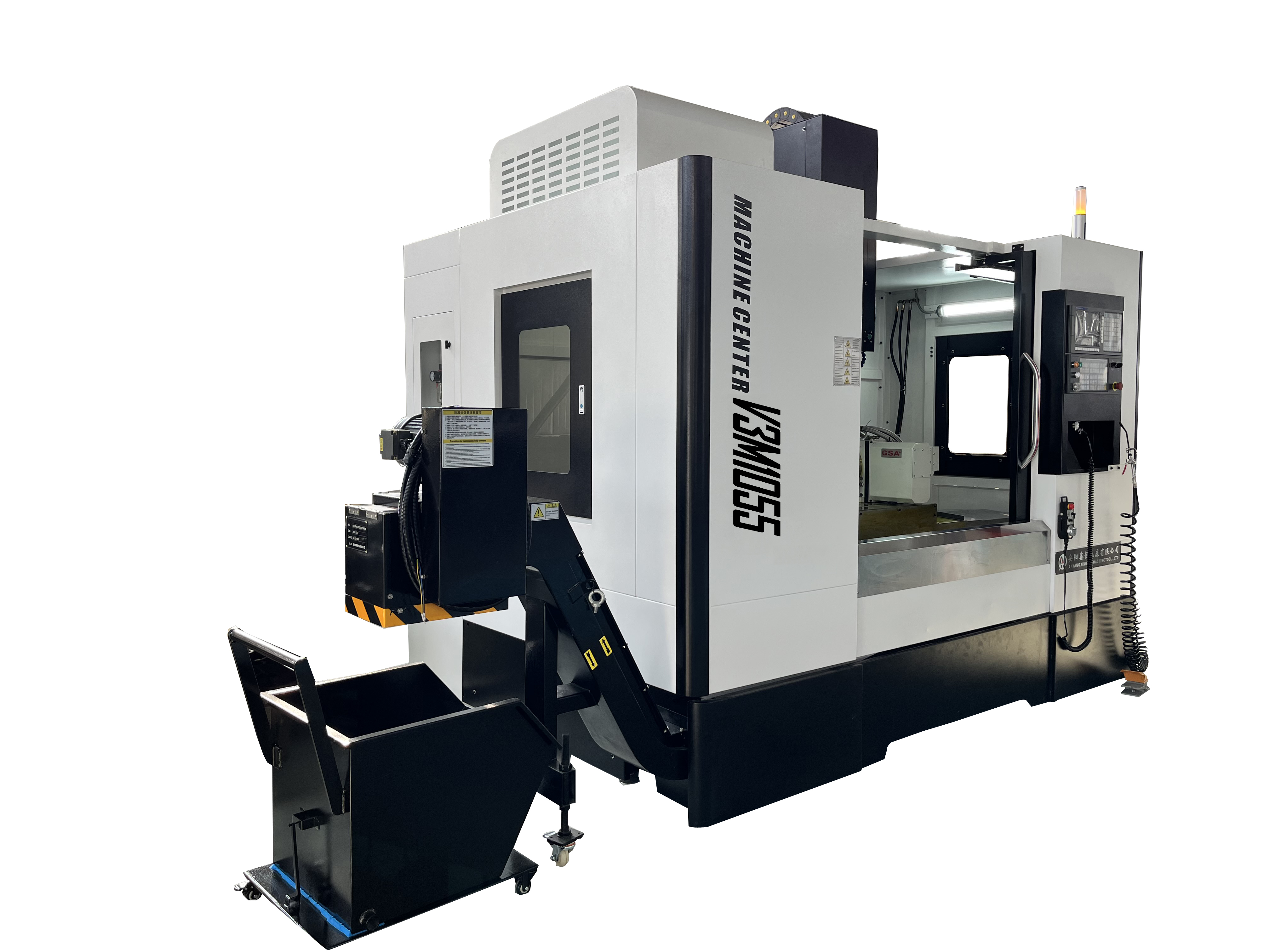

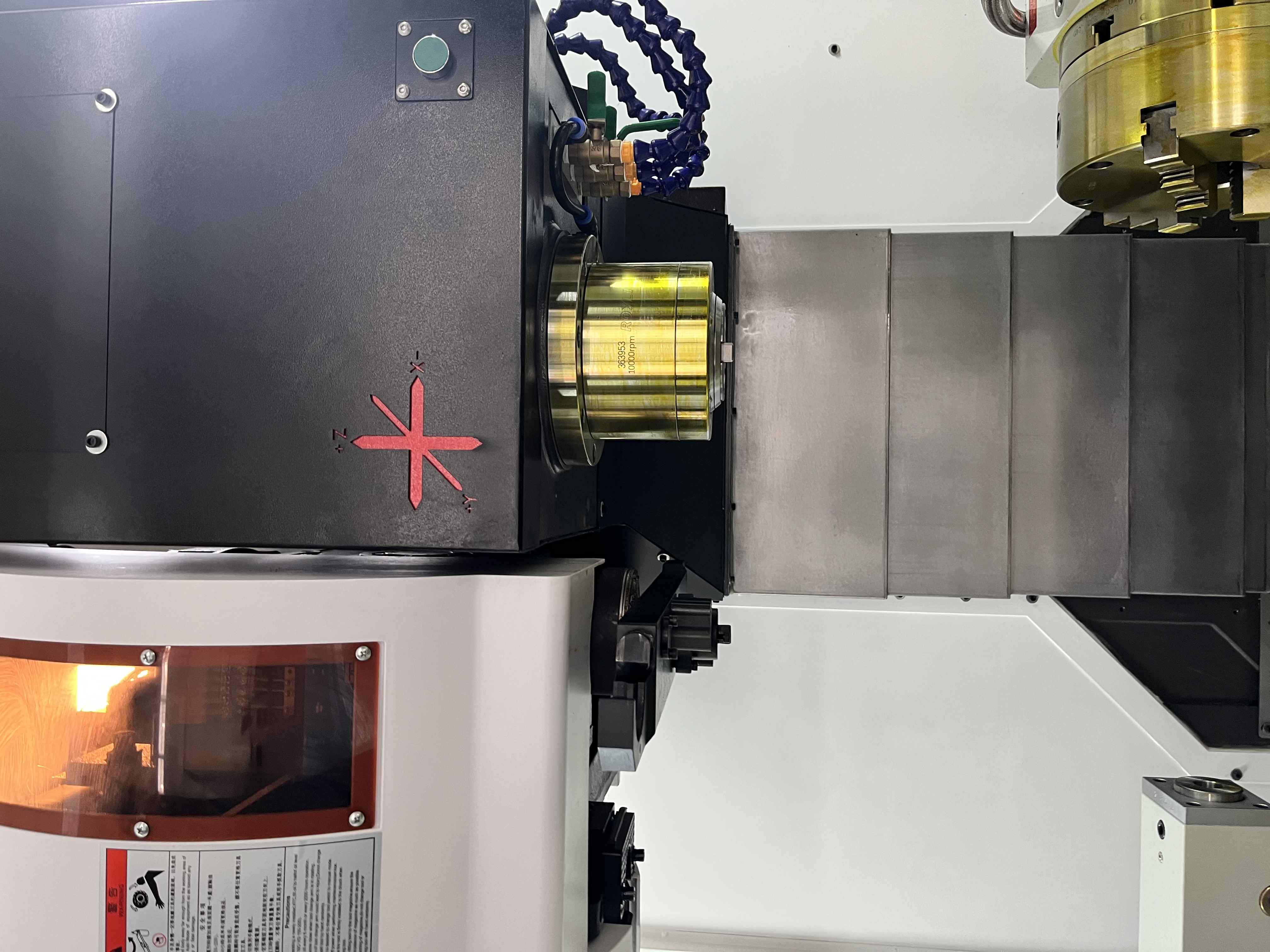

Vertical machine center

Standard accessory: Fanuc 0i-MF (5) CNC system

INQUIRY DOWNLOAD

Description Parameter VideoProduction

Standard accessory:

Fanuc 0i-MF (5) CNC system

16/24 ATC

Movable Manual Pulse Generator

LED work light

Coolant system

Automatic Lubrication system

Schneider electrical component

Cabinet shield

Leveling wedge

Anchor bolt

Wrench

Chip conveyor & trolley

Optional accessory:

GSK CNC system

Siemens CNC system

Mitsubishi CNC system

Spindle speed upgrade

Coolant-through spindle bore

Cabinet air conditioner

High pressure pump

Oil mist collector

Oil skimmer

Parts catcher

Robot

Transformer

Tool setter

Workpiece probe

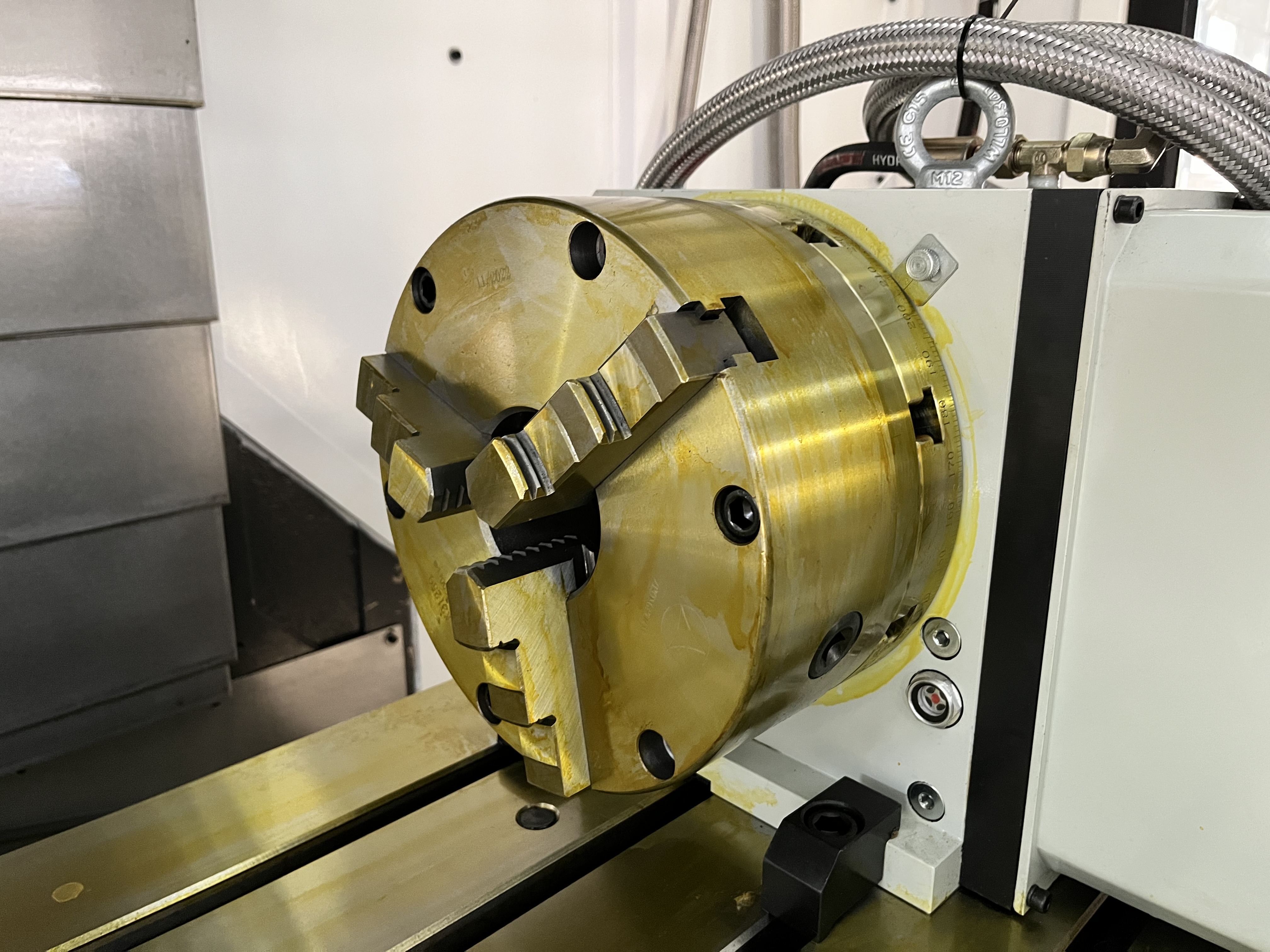

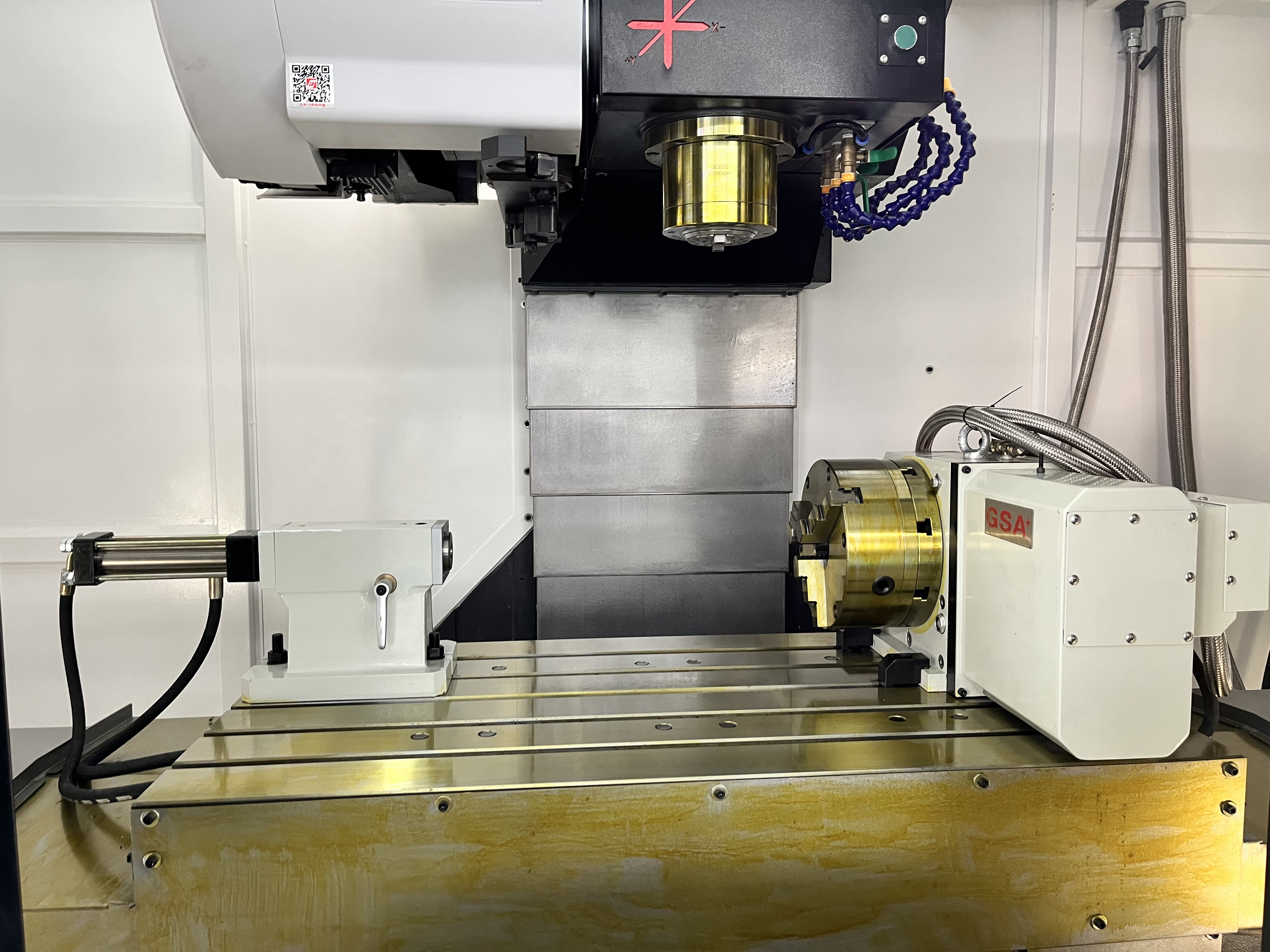

4-axis

32 ATC

Specification		Unit	V3M655	V3M855	V3M1055	V3M1377	V3M1587	V3M1696	V3M1896	V3M2087H
Capacity	Worktable dimension	mm×mm	500×800	500×1000	550×1000	1400×700	1600×800	1800×900	2000×900	2200×820
	Max. load capacity	kg	400	500	600	1200	1400	1600	1600	1400
	T slot	-	4-14×84	5-18×90	5-18×90	5-18×110	5-18×110	5-22×165	5-22×165	5-18×120
	Distance between spindle center to Z-axis guideway surface	-	550	570	595	750	855	950	950	850
	Distance between spindle nose to worktable	mm	120-620	120-620	120-670	BT40:110-81 0 BT50:75-775	150-850	160-840	160-840	200-900
	Guideway type of X-axis/Y-axis/Z-axis		Linear/Linear/Linear	Linear/Linear/Linear	Linear/Linear/Linear	Linear/Linear/Linear	Linear/Linear/Linear	Quenched/Quenched/Quenched	Quenched/Quenched/Quenched	Quenched/Quenched/Quenched
Spindle	Spindle nose type	-	BT40	BT40	BT40	BT50(BT40)	BT50	BT50	BT50	BT50
	Max. spindle speed	rpm	8000/12000	8000/12000	8000/12000	8000	6000	6000	6000	6000
	Spindle transmission	-	synchronous belt\direct drive	synchronous belt\direct drive	synchronous belt\direct drive	synchronous belt\direct drive	synchronous belt\direct drive	synchronous belt\direct drive	synchronous belt\direct drive	synchronous belt\direct drive
	Spindle motor power	kW	5.5	7.5	7.5	15-18.5	15-18.5	15-18.5	15-18.5	15-18.5
	Spindle torque	N·m	23.5	35	35	64	64	64	64	64
Feed	X-axis stroke	mm	600	800	1000	1300	1500	1600	1800	2000
	Y-axis stroke	mm	500	500	550	700	800	900	900	800
	Z-axis stroke	mm	500	500	550	700	700	680	680	700
	Rapid traverse speed of X-axis/Y-axis/Z-axis	m/min	48/48/48	48/48/48	48/48/48	32/32/32	30/30/30	24/24/15	24/24/15	24/24/15
	Max. feeding speed of X-axis/Y-axis/Z-axis	m/min	1-10	1-10	1-10	1-10000	1-10000	1-10000	1-8000	1-8000
ATC	ATC type	-	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type
	No. of switching positions	pcs	16	24	24	24	24	24	24	24
	Max. tool diameter with/without tool in adjacent tool position	-	80/150	80/150	80/150	110/200	110/200	110/200	110/200	110/200
	Max. tool weight	kg	8	8	8	18	18	18	18	18
	Max. tool length	mm	300	300	300	300	300	300	300	300
	Tool indexing time (excluding tool releasing and locking time)	sec.	1.3-2.2	1.3-2.2	1.3-2.2	2.91	2.91	2.91	2.91	2.91
Precision	Repeat positioning accuracy	mm	0.003/300	0.003/300	0.003/300	±0.003	±0.003	±0.005	±0.005	±0.01
Precision	Positioning accuracy	mm	0.005/300	0.005/300	0.005/300	±0.005	±0.005	±0.008	±0.008	±0.008
Others	Electricity capacity	kAV	20	20	25	30	30	30	30	30
	Required air pressure	Kgf/cm²	6	6	6	-	-	-	-	-
	Long×Width×Height	mm	1650×1390×1950	2600×2340×2600	2800×2340×2600	320025402600	390027403650	445033952105	550033952345	542028002810
	Net weight	kg	4300	5300	5600	10000	13500	14500	15500	10700
CNC system	CNC systhem	-	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)
